Surface mount data line filter featuring 2 functions, a 250V DC rated voltage, and a maximum DC current of 2.5A. This component offers 1.8mH inductance with 80mR DC resistance, operating within a temperature range of -40°C to 130°C. Packaged in tape and reel for automated assembly, it is RoHS compliant.
PackageSMD/SMT
Current2.5A
MountingSurface Mount, Radial
Inductance1.8mH
Quick Jump:
Technical Specifications
Pulse PE-53912NLT technical specifications.
General
| Package/Case | SMD/SMT |
| Current | 2.5A |
| DC Current | 2.5A |
| DC Resistance (DCR) | 80mR |
| Depth | 19.56mm |
| Height | 9.9mm |
| Inductance | 1.8mH |
| Lead Pitch | 16.76mm |
| Length | 0.77inch |
| Max DC Current | 2.5A |
| Max Operating Temperature | 130°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, Radial |
| Number of Lines | 2 |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 2.2MHz |
| Shielding | Unshielded |
| Termination | Radial |
| DC Rated Voltage | 250V |
| Width | 0.67inch |
Compliance
| RoHS | Compliant |
Datasheet
Pulse PE-53912NLT Datasheet
Download the complete datasheet for Pulse PE-53912NLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

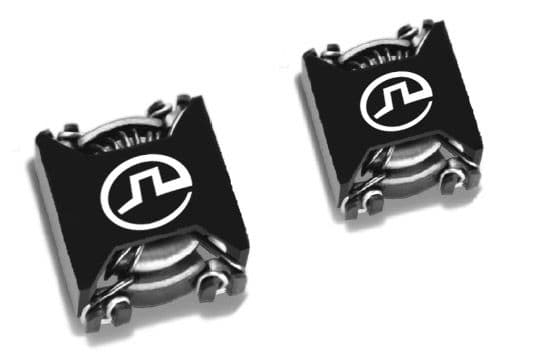

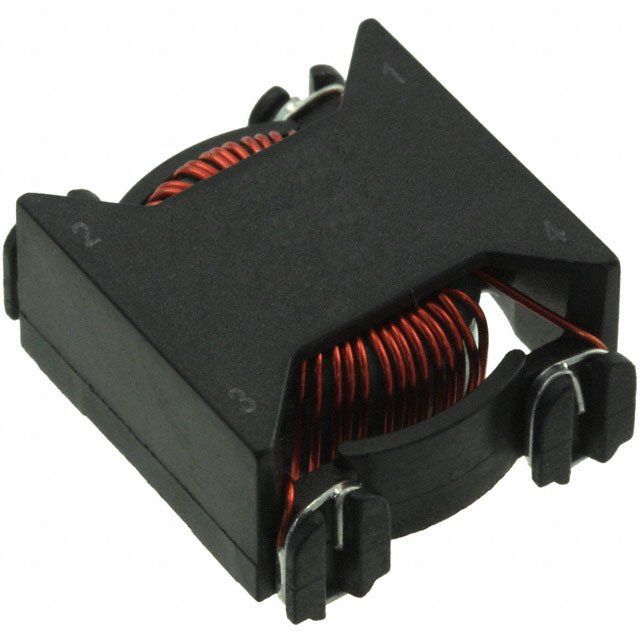

Product Images
