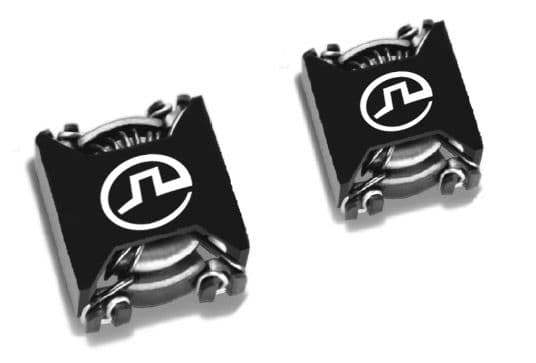

Dual common mode choke for power and signal lines, featuring 6mH inductance per line and a 1A maximum DC current rating. This surface mount component offers a low 450mΩ DC resistance and operates across a wide temperature range of -40°C to 130°C. Designed for automotive applications, it is supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse PE-53913NLT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Current | 1A |
| DC Current | 1A |
| DC Resistance (DCR) | 450mR |
| Depth | 16.38mm |
| Height | 8.89mm |
| Inductance | 6mH |
| Lead Pitch | 13.46mm |
| Length | 14.22mm |
| Max DC Current | 1A |
| Max Operating Temperature | 130°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, Radial |
| Number of Lines | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 500kHz |
| Shielding | Unshielded |
| Termination | Radial |
| Width | 0.56inch |
| RoHS | Compliant |
