Technical Specifications
Pulse PE-64488NL technical specifications.
General
| Current Rating | 20A |
| DC Resistance (DCR) | 4.5R |
| Depth | 17.78mm |
| Frequency | 200kHz |
| Height | 17.78mm |
| Height - Seated (Max) | 17.78mm |
| Inductance | 80mH |
| Lead/Base Style | PC Pin |
| Length | 22.86mm |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Frequency | 20 to 2000 KHz |
| Package Quantity | 45 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | THT |
| Termination | PC Pin |
| Transformer Type | CURRENT SENSE TRANSFORMER |
| Turns Ratio | 1:200 |
| Width | 17.78mm |
Compliance
| RoHS | Compliant |
Datasheet
Pulse PE-64488NL Datasheet
Download the complete datasheet for Pulse PE-64488NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

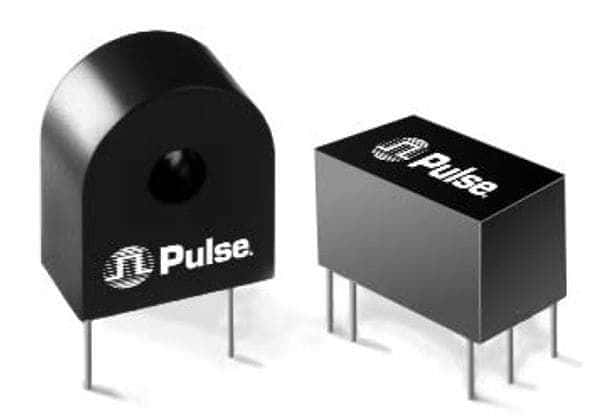

Product Images
