Pulse
PE-65388NL
Telecom Transformer 1:1.15CT 0.7Ohm Prim. DCR 0.9Ohm Sec. DCR 6 Terminal PC Pin Thru-Hole
PackageDIP
MountingThrough Hole
Inductance1.5mH
Quick Jump:
Technical Specifications
Pulse PE-65388NL technical specifications.
General
Package/Case
DIP
DC Resistance (DCR)
700mR
Depth
8.89mm
Height
6.35mm
Height - Seated (Max)
6.35mm
Inductance
1.5mH
Lead/Base Style
PC Pin
Length
12.7mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Through Hole
Package Quantity
60
Packaging
Rail/Tube
Return Loss
11dB
RoHS Compliant
Yes
Termination
Through Hole
Turns Ratio
1:1.15
Width
8.89mm
Compliance
RoHS
Compliant
Datasheet
Pulse PE-65388NL Datasheet
Download the complete datasheet for Pulse PE-65388NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

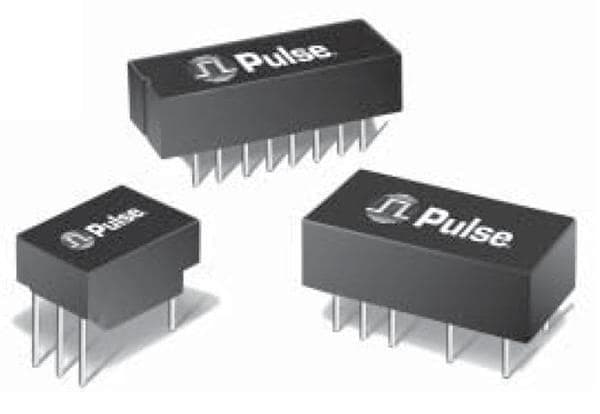

Product Images
