Pulse

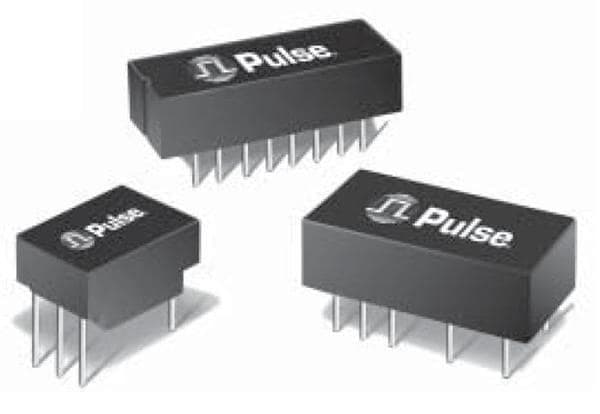

PE-65770NL
Telecom Transformer 1:1.15CT 0.9Ohm Prim. DCR 1Ohm Sec. DCR 6 Terminal PC Pin Thru-Hole
PackageDIP
MountingThrough Hole
Inductance1.5mH
Quick Jump:
Technical Specifications
Pulse PE-65770NL technical specifications.
General
Package/Case
DIP
DC Resistance (DCR)
900mR
Depth
8.89mm
Height
6.35mm
Height - Seated (Max)
6.35mm
Inductance
1.5mH
Isolation Voltage
1.5kV
Lead/Base Style
PC Pin
Length
12.7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
60
Packaging
Rail/Tube
Radiation Hardening
No
Return Loss
11dB
RoHS Compliant
Yes
Termination
Through Hole
Turns Ratio
1:1.15
Width
8.89mm
Compliance
RoHS
Compliant
