Pulse
PE-65833NL
Telecom Transformer 1CT:2CT 0.5Ohm Prim. DCR 0.9Ohm Sec. DCR 10 Terminal PC Pin Thru-Hole
PackageDIP
MountingThrough Hole
Inductance1.2mH
Quick Jump:
Technical Specifications
Pulse PE-65833NL technical specifications.
General
Package/Case
DIP
DC Resistance (DCR)
500mR
Depth
14.22mm
Height
10.2mm
Height - Seated (Max)
10.2mm
Inductance
1.2mH
Isolation Voltage
1.5kV
Lead/Base Style
PC Pin
Length
14.22mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Through Hole
Package Quantity
35
Packaging
Bulk
Primary Impedance
500mR
Radiation Hardening
No
Return Loss
11dB
RoHS Compliant
Yes
Secondary Impedance
900mR
Shielding
Unshielded
Termination
Through Hole
Turns Ratio
1:2
Width
14.22mm
Compliance
RoHS
Compliant
Datasheet
Pulse PE-65833NL Datasheet
Download the complete datasheet for Pulse PE-65833NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

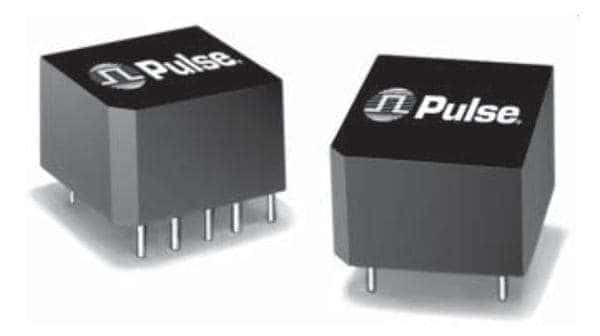

Product Images
