Surface mount audio transformer featuring a 1:1 turns ratio and 1500Vrms isolation. Primary and secondary windings exhibit 0.5 Ohm DC resistance (DCR). Designed with gull wing leads for SMD mounting, this component operates within a -40°C to 85°C temperature range. Available in tape and reel packaging.
MountingSurface Mount
Quick Jump:
Technical Specifications
Pulse PE-65848NLT technical specifications.
General
| DC Resistance (DCR) | 1R |
| Depth | 12.06mm |
| Lead/Base Style | Gull Wing |
| Length | 12.06mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transformer Type | RF TRANSFORMER |
Compliance
| RoHS | Compliant |
Datasheet
Pulse PE-65848NLT Datasheet
Download the complete datasheet for Pulse PE-65848NLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

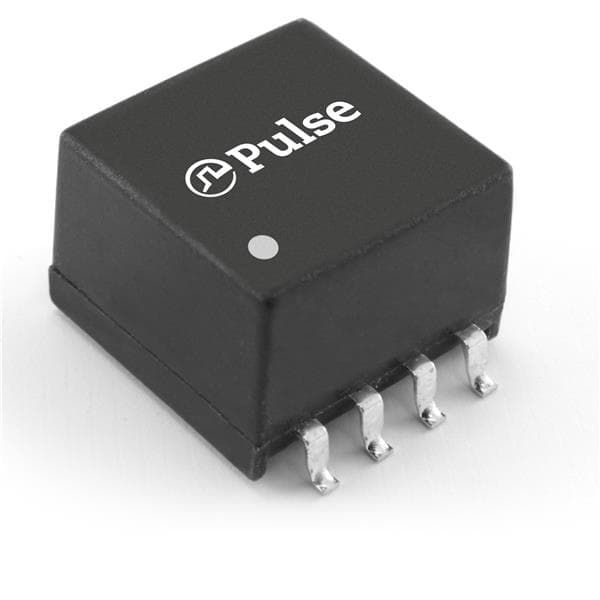

Product Images
