Current Transformer with a 1:200 turns ratio, designed for general current sensing applications. Features a 38A current rating and operates across a frequency range of 10 to 200 kHz. Offers a secondary DC resistance of 4.5 Ohms and an inductance of 80mH. This through-hole mounted component utilizes PC pin terminations and withstands 3750Vrms. Dimensions include a 19.05mm height, 14.35mm width, and 19.05mm length.
Frequency200kHz
Current Rating38A
MountingThrough Hole
Inductance80mH
Quick Jump:
Technical Specifications
Pulse PE-67200NL technical specifications.
General
| Current Rating | 38A |
| DC Resistance (DCR) | 4.5R |
| Frequency | 200kHz |
| Height | 19.05mm |
| Height - Seated (Max) | 19.05mm |
| Inductance | 80mH |
| Lead/Base Style | PC Pin |
| Length | 19.05mm |
| Mount | Through Hole |
| Operating Frequency | 10 to 200 kHz |
| Package Quantity | 80 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | PC Pin |
| Turns Ratio | 1:200 |
| Width | 14.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Pulse PE-67200NL Datasheet
Download the complete datasheet for Pulse PE-67200NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

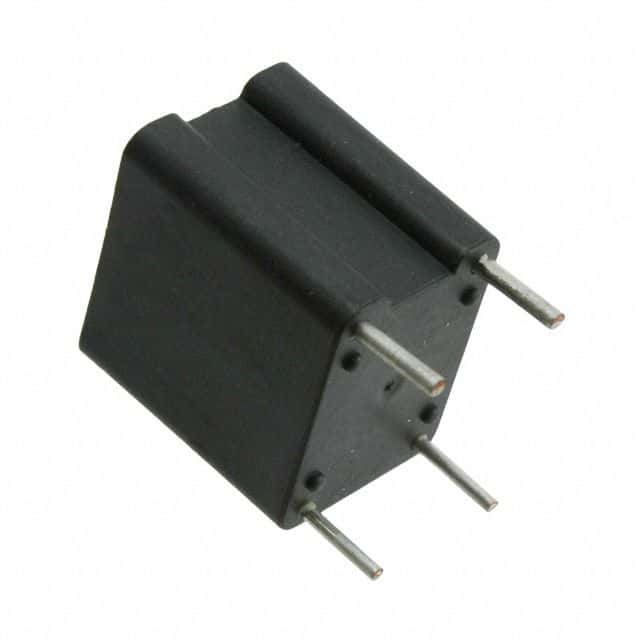

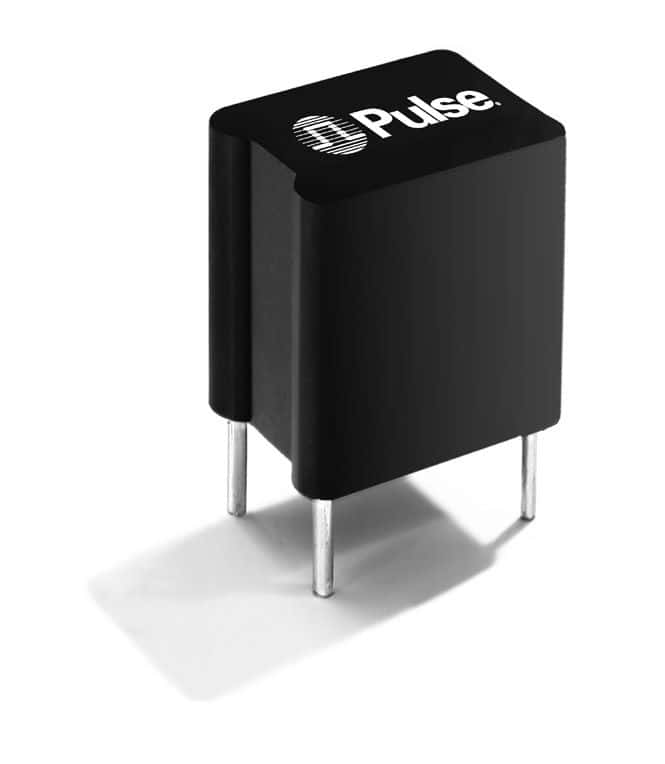

Product Images
