Frequency200kHz
Current Rating37A
MountingThrough Hole
Inductance180mH
Quick Jump:
Technical Specifications

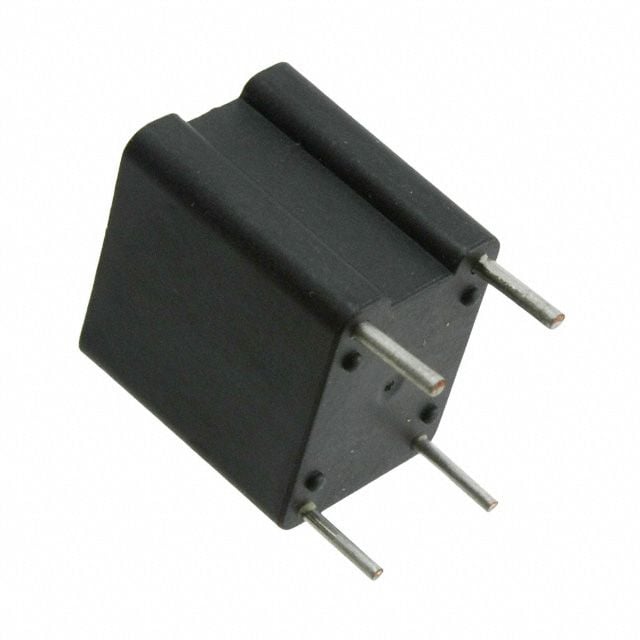

Pulse PE-67300NL technical specifications.
General
Current Rating
37A
DC Resistance (DCR)
11R
Depth
14.35mm
Frequency
200kHz
Height
19.05mm
Height - Seated (Max)
19.05mm
Inductance
180mH
Lead/Base Style
PC Pin
Length
19.05mm
Max Operating Temperature
130°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operating Frequency
10 to 200 kHz
Package Quantity
80
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Termination
PC Pin
Transformer Type
CURRENT SENSE TRANSFORMER
Turns Ratio
1:300
Width
14.35mm
Compliance
RoHS
Compliant
Datasheet
Pulse PE-67300NL Datasheet
Download the complete datasheet for Pulse PE-67300NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
