Pulse

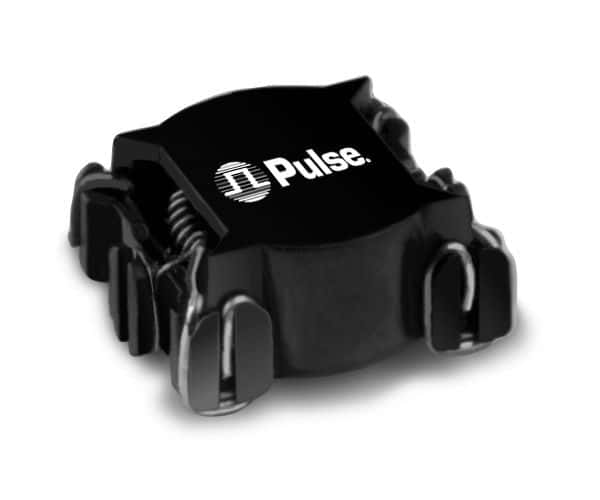

PE-68280NLT
Current Transformer 1:1:100 500Vrms 0.001Ohm Prim. DCR 0.93Ohm Sec. DCR 15000mA Prim. 6 Terminal SMD
Frequency500kHz
Current Rating15A
MountingSurface Mount
Inductance14.8mH
Quick Jump:
Technical Specifications
Pulse PE-68280NLT technical specifications.
General
Current Rating
15A
DC Resistance (DCR)
1mR
Depth
12.57mm
Frequency
500kHz
Height
7.11mm
Height - Seated (Max)
7.11mm
Inductance
14.8mH
Length
14.61mm
Max Operating Temperature
130°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Frequency
50 to 500 kHz
Package Quantity
300
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
PE-68XXXNL
Termination
SMD/SMT
Transformer Type
CURRENT SENSE TRANSFORMER
Turns Ratio
1:1
Width
12.45mm
Compliance
RoHS
Compliant
Datasheet
Pulse PE-68280NLT Datasheet
Download the complete datasheet for Pulse PE-68280NLT to view detailed technical specifications.
