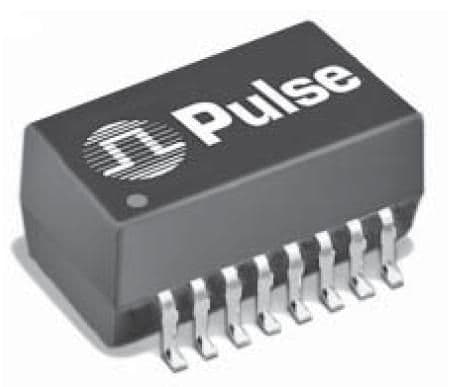

The Pulse PE-68864 telecom transformer is a surface mount component with a 1:2 turns ratio and a primary impedance of 700 milliohms. It is designed to operate within a temperature range of 0 to 70 degrees Celsius. The transformer is packaged in a rail/Tube container and is available in quantities of 30. It is not compliant with RoHS regulations. The component measures 15.24 millimeters in depth, 8.64 millimeters in height, 17.15 millimeters in length, and 11.58 millimeters in width. It has a maximum isolation voltage of 1.5 kilovolts and a return loss of 11 decibels.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Pulse PE-68864 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Depth | 15.24mm |
| Height | 8.64mm |
| Isolation Voltage | 1.5kV |
| Lead/Base Style | Gull Wing |
| Length | 17.15mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Primary Impedance | 700mR |
| Return Loss | 11dB |
| RoHS Compliant | No |
| Secondary Impedance | 700mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:2 |
| Width | 11.58mm |
| RoHS | Not Compliant |
