Pulse
PE-68874NL
Telecom Transformer 2(1CT:1.15CT) 1.2Ohm/1.2Ohm Prim. DCR 1.4Ohm/1.4Ohm Sec. DCR 12 Terminal Gull Wing SMD
MountingSurface Mount
Inductance1.2mH
Quick Jump:
Technical Specifications
Pulse PE-68874NL technical specifications.
General
Height
8.64mm
Height - Seated (Max)
8.64mm
Inductance
1.2mH
Isolation Voltage
1.5kV
Lead/Base Style
Gull Wing
Length
17.15mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
30
Packaging
Rail/Tube
Primary Impedance
1.2R
Radiation Hardening
No
RoHS Compliant
Yes
Secondary Impedance
1.4R
Termination
SMD/SMT
Turns Ratio
1:1.15
Width
11.58mm
Compliance
RoHS
Compliant
Datasheet
Pulse PE-68874NL Datasheet
Download the complete datasheet for Pulse PE-68874NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

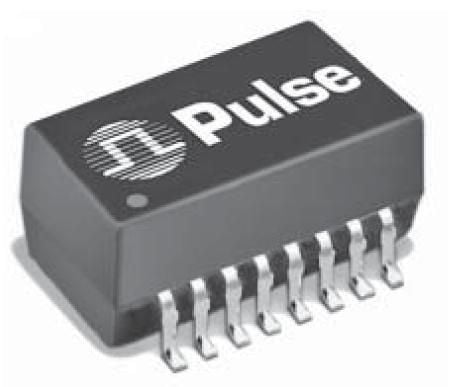

Product Images
