Surface mount telecom transformer featuring a 1CT:1CT/1CT:2.4CT turns ratio and 0.85 Ohm primary DC resistance. This component offers 1.5kV isolation voltage and operates within a -40°C to 85°C temperature range. Its gull wing lead style and SMD termination facilitate easy surface mounting. Inductance is specified at 1mH, with dimensions of 12.83mm length, 7.11mm width, and 6.22mm height. The transformer is lead-free and RoHS compliant.
MountingSurface Mount
Inductance1mH
Quick Jump:
Technical Specifications
Pulse T1144NL technical specifications.
General
Depth
9.53mm
Height
6.22mm
Height - Seated (Max)
6.22mm
Inductance
1mH
Isolation Voltage
1.5kV
Lead Free
Lead Free
Lead/Base Style
Gull Wing
Length
12.83mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
40
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Shielding
Unshielded
Termination
SMD/SMT
Turns Ratio
1:1
Width
7.11mm
Compliance
RoHS
Compliant
Datasheet
Pulse T1144NL Datasheet
Download the complete datasheet for Pulse T1144NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

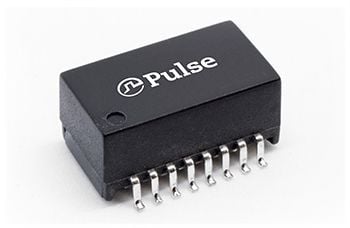

Product Images
