MountingSurface Mount
Inductance1.2mH
Quick Jump:
Technical Specifications
Pulse TX1099NL technical specifications.
General
Depth
9.53mm
Height
6.22mm
Height - Seated (Max)
6.22mm
Inductance
1.2mH
Isolation Voltage
1.5kV
Lead/Base Style
Gull Wing
Length
12.83mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
Return Loss
11dB
RoHS Compliant
Yes
Shielding
Unshielded
Termination
SMD/SMT
Turns Ratio
1:1
Width
7.11mm
Compliance
RoHS
Compliant
Datasheet
Pulse TX1099NL Datasheet
Download the complete datasheet for Pulse TX1099NL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

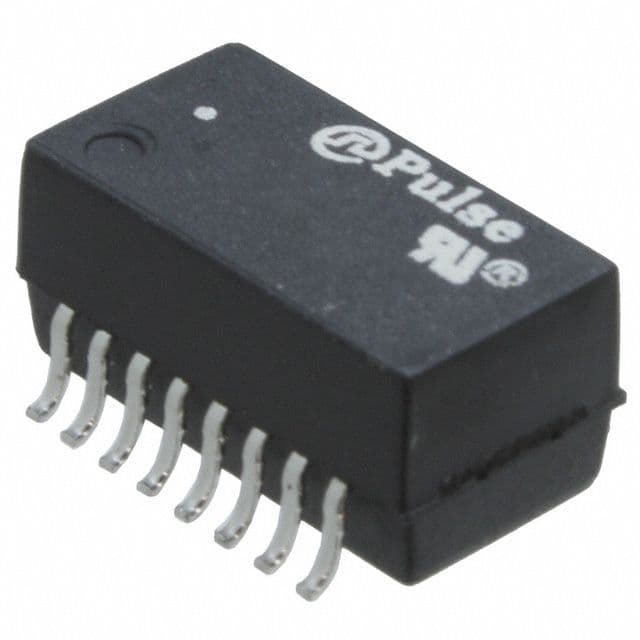

Product Images
