SPST tactile switch featuring a normally open (N.O.) contact configuration and a dome contact for reliable actuation. Designed for through-hole mounting on PCBs, this component offers gold contact material for enhanced conductivity. It operates within a temperature range of -40°C to 85°C and supports a maximum current of 0.1A at 35VAC/35VDC, with a power rating of 1VA and an actuation force of 8N. Dimensions include a height of 3.85mm, length of 6.4mm, and width of 5.1mm, with soldering termination.
Package002
MountingPCB
Quick Jump:
Technical Specifications
Rafi 1.14.002.116/0000 technical specifications.
General
Package/Case
002
Contact Material
Gold
Contact Type
1 maker
Height
3.85mm
Length
6.4mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
PCB
RoHS Compliant
Yes
Termination
Soldering
Width
5.1mm
Compliance
RoHS
Compliant
Datasheet
Rafi 1.14.002.116/0000 Datasheet
Download the complete datasheet for Rafi 1.14.002.116/0000 to view detailed technical specifications.
No datasheet is available for this part.

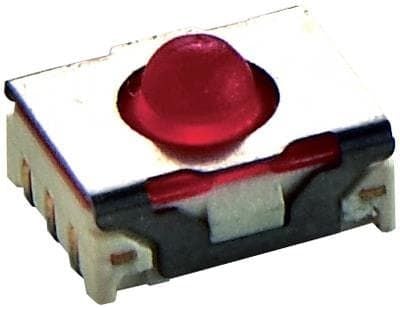

Product Images
