Surface mount isolated DC/DC converter, 0.5W output power, featuring 15V nominal input and 12V output voltage. Delivers 42mA maximum output current with 64% efficiency and 2kV isolation voltage. Operates within a -40°C to 85°C temperature range and includes short-circuit protection. Packaged in SMD/SMT for tape and reel deployment.
PackageSMD/SMT
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Recom R0.5Z-1512/H-R technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
42mA
Efficiency
64%
Features
SCP
Height
7mm
Isolation Voltage
2kV
Lead Free
Lead Free
Length
15.24mm
Max Input Voltage
15.75V
Min Input Voltage
14.25V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
42mA
Max Output Voltage
12V
Max Power Dissipation
500mW
Mount
Surface Mount
Nominal Input Voltage (DC)
15V
Number of Outputs
1
Output Power
500mW
Package Quantity
500
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
ECONOLINE R0.5Z
Voltage - Output 1
12V
Weight
1.2g
Width
10.7mm
Compliance
RoHS
Compliant
Datasheet
Recom R0.5Z-1512/H-R Datasheet
Download the complete datasheet for Recom R0.5Z-1512/H-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

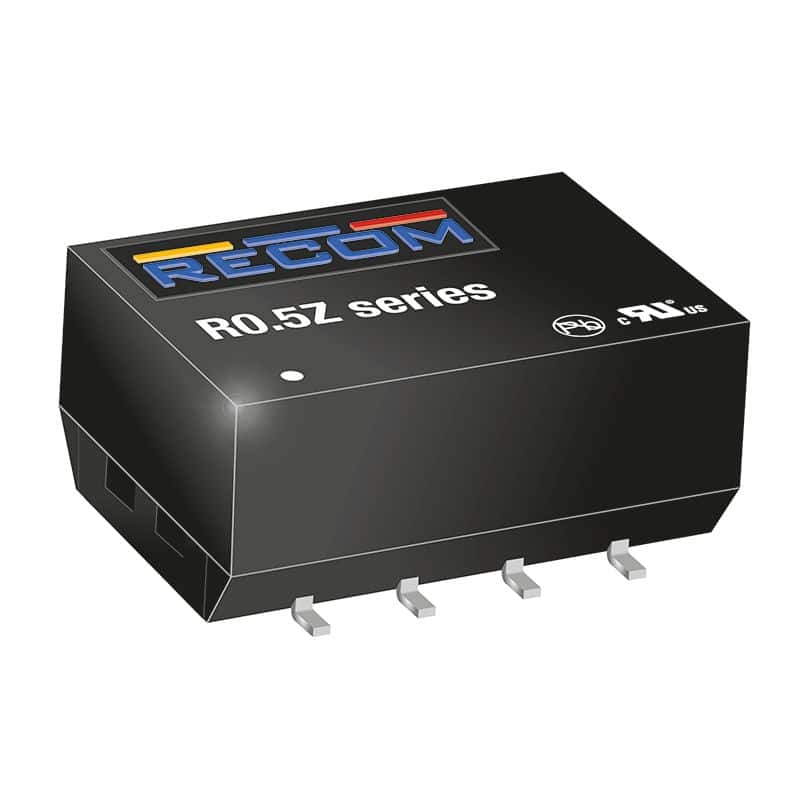

Product Images
