Isolated DC/DC converter, 1W output power, 12V nominal output voltage, 84mA output current. Features 8kV isolation voltage and 82% efficiency. Operates with a 4.5V to 5.5V DC input voltage range. Packaged in a SIP for through-hole mounting, with dimensions of 19.5mm (L) x 9.8mm (W) x 12.5mm (H). RoHS compliant and lead-free.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Recom R05P12S/R8 technical specifications.
General
Package/Case
SIP
Current - Output 1
84mA
Depth
19.5mm
Efficiency
82%
Height
12.5mm
Isolation
Isolated
Isolation Voltage
8kV
Lead Free
Lead Free
Length
19.5mm
Max Input Voltage (DC)
5.5V
Min Input Voltage (DC)
4.5V
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
84mA
Max Output Power
1W
Max Output Voltage
12V
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
5V
Nominal Output Voltage
12V
Number of Outputs
1
Output Current
84mA
Output Power
1W
Output Voltage
12V
Package Quantity
25
Packaging
Rail/Tube
Pitch
2.54mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECONOLINE RxxPxx/R
Voltage - Output 1
12V
Weight
4.3g
Width
9.8mm
Compliance
RoHS
Compliant
Datasheet
Recom R05P12S/R8 Datasheet
Download the complete datasheet for Recom R05P12S/R8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

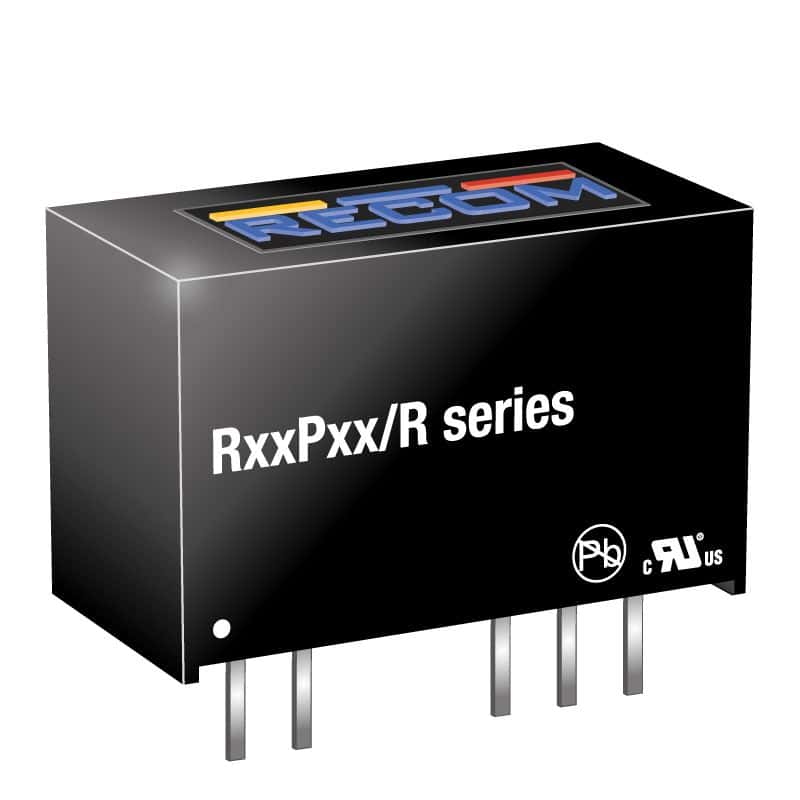

Product Images
