1W DC/DC converter with 12V output voltage and 84mA output current. Features 82% efficiency, 8kV isolation voltage, and a SIP package for through-hole mounting. Operates within a 4.5V to 5.5V input voltage range, with a nominal input of 5V. This lead-free, RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Recom R05P12S/X2/R8 technical specifications.
General
Package/Case
SIP
Efficiency
82%
Height
12.5mm
Isolation Voltage
8kV
Lead Free
Lead Free
Length
19.5mm
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
84mA
Max Output Voltage
12V
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
5V
Number of Outputs
1
Output Current
84mA
Output Power
1W
Output Voltage
12V
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
ECONOLINE RxxPxx/R (1W)
Voltage - Output 1
12V
Weight
4.3g
Width
9.8mm
Compliance
RoHS
Compliant
Datasheet
Recom R05P12S/X2/R8 Datasheet
Download the complete datasheet for Recom R05P12S/X2/R8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

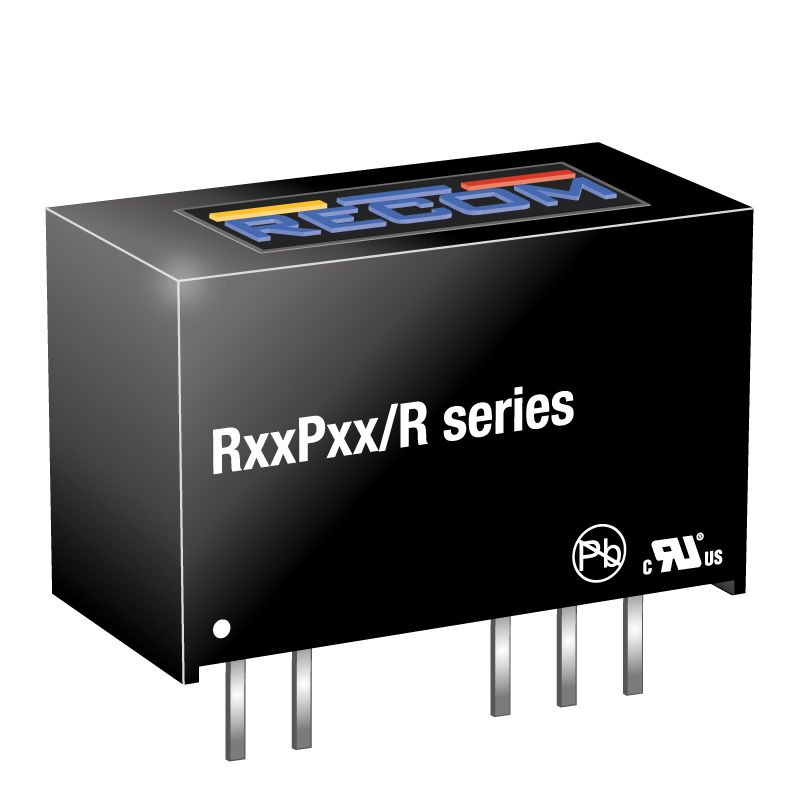

Product Images
