Isolated DC-DC converter, 2W output power, featuring 15V output voltage and 132mA maximum output current. Operates with a 4.5V to 5.5V DC input voltage range, offering 8kV I/O isolation. This through-hole mounted component boasts 88% efficiency and a wide operating temperature range of -40°C to 85°C. Housed in a SIP package with dimensions of 19.5mm x 9.8mm x 12.5mm, it is lead-free and RoHS compliant.
PackageSIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
Recom R05P215S/R8 technical specifications.
General
Package/Case
SIP
Depth
9.8mm
Efficiency
88%
Height
12.5mm
Isolation
Isolated
Isolation Voltage
8kV
Lead Free
Lead Free
Length
19.5mm
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
132mA
Max Output Voltage
15V
Max Power Dissipation
2W
Mount
Through Hole
Nominal Input Voltage
5V
Number of Outputs
1
Output Current
132mA
Output Power
2W
Output Voltage
15V
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
ECONOLINE RxxP2xx/R (2W)
Voltage - Output 1
15V
Weight
4.3g
Width
9.8mm
Compliance
RoHS
Compliant
Datasheet
Recom R05P215S/R8 Datasheet
Download the complete datasheet for Recom R05P215S/R8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

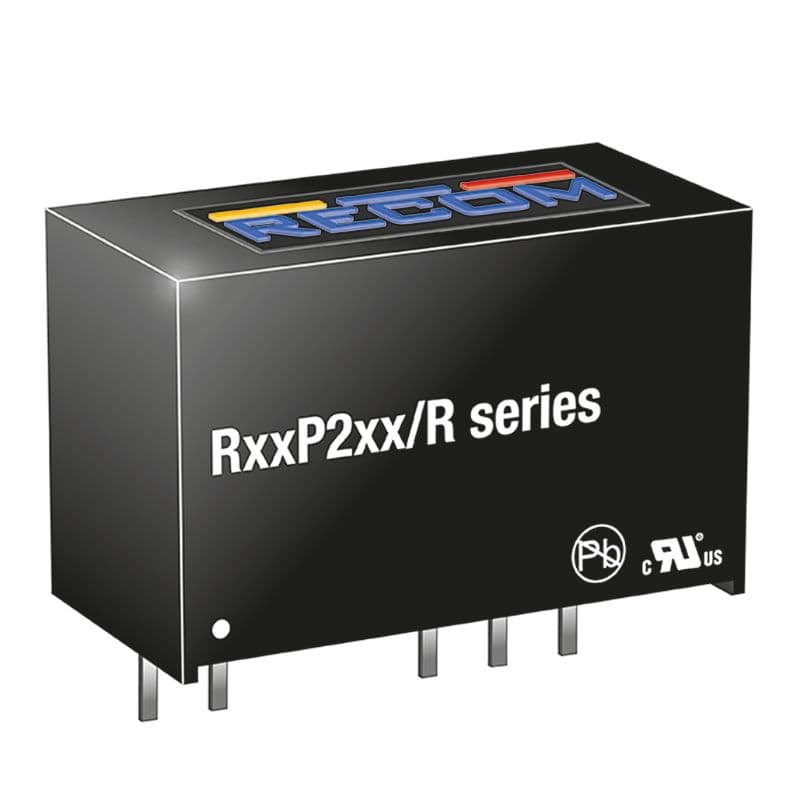

Product Images
