1W isolated DC/DC converter for surface mount applications. Features dual outputs with +/- 100mA current capability and +/- 5V output voltage. Operates from a 4.5V to 5.5V input, delivering 1W maximum output power with 78% efficiency. Includes short-circuit protection (SCP) and 1kV isolation voltage. RoHS compliant and lead-free.
PackageSMD/SMT
MountingSurface Mount, PCB
Power1W
Quick Jump:
Technical Specifications
Recom R1D-0505 technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
-100mA
Current - Output 2
100mA
Depth
15.24mm
Efficiency
78%
Features
SCP
Height
6.7mm
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
15.24mm
Max Input Voltage (DC)
5.5V
Min Input Voltage (DC)
4.5V
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Power
1W
Max Output Voltage
5V
Max Power Dissipation
1W
Mount
Surface Mount, PCB
Nominal Input Voltage
5V
Nominal Output Voltage
-5V
Number of Outputs
2
Output Current
100mA
Output Power
1W
Output Voltage
5V
Package Quantity
33
Packaging
Rail/Tube
Pitch
2.54mm
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECONOLINE R1D
Voltage - Output 1
5V
Voltage - Output 2
-5V
Weight
1.2g
Width
10.7mm
Compliance
RoHS
Compliant
Datasheet
Recom R1D-0505 Datasheet
Download the complete datasheet for Recom R1D-0505 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

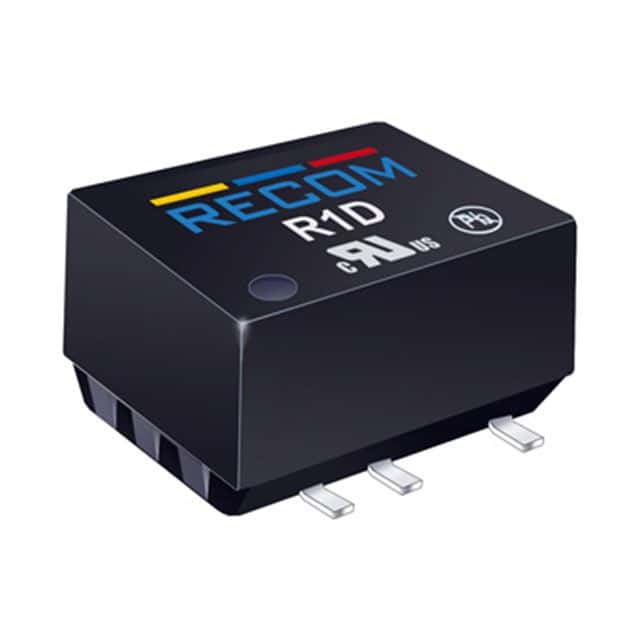

Product Images
