Isolated DC-DC Converter, 1W output power, featuring dual +/-5V outputs with 100mA current capability per output. Operates with a 4.5V to 5.5V DC input voltage range, nominal 5V, and offers 78% efficiency. This SIP package component provides 1kV isolation and includes short-circuit protection (SCP). Designed for through-hole PCB mounting, it operates across a -40°C to 85°C temperature range.
PackageSIP
MountingThrough Hole, PCB
Power1W
Quick Jump:
Technical Specifications
Recom RB-0505D technical specifications.
General
Package/Case
SIP
Current - Output 1
-100mA
Current - Output 2
100mA
Depth
6mm
Efficiency
78%
Features
SCP
Height
10.2mm
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
19.6mm
Max Input Voltage (DC)
5.5V
Min Input Voltage (DC)
4.5V
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Power
1W
Max Output Voltage
5V
Max Power Dissipation
1W
Mount
Through Hole, PCB
Nominal Input Voltage
5V
Number of Outputs
2
Output Current
100mA
Output Power
1W
Output Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECONOLINE RB
Voltage - Output 1
5V
Voltage - Output 2
-5V
Weight
2.2g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RB-0505D Datasheet
Download the complete datasheet for Recom RB-0505D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

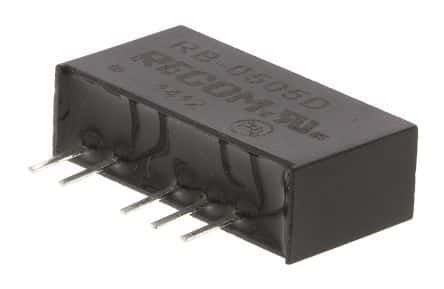

Product Images
