Isolated DC-DC converter with dual +/-12V outputs, delivering 1W maximum output power. Features 42mA maximum output current per channel, 82% efficiency, and 1kV isolation voltage. Operates within a 4.5V to 5.5V DC input range, with a nominal input of 5V. Packaged in a SIP for through-hole PCB mounting, this component offers short-circuit protection (SCP) and operates from -40°C to 85°C.
PackageSIP
MountingThrough Hole, PCB
Power1W
Quick Jump:
Technical Specifications
Recom RB-0512D technical specifications.
General
Package/Case
SIP
Current - Output 1
42mA
Current - Output 2
42mA
Depth
6mm
Efficiency
82%
Features
SCP
Height
10.2mm
Isolation
Isolated
Isolation Voltage
1kV
Lead Free
Lead Free
Length
19.6mm
Max Input Voltage (DC)
5.5V
Min Input Voltage (DC)
4.5V
Max Input Voltage
5.5V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
42mA
Max Output Power
1W
Max Output Voltage
12V
Max Power Dissipation
1W
Mount
Through Hole, PCB
Nominal Input Voltage
5V
Number of Outputs
2
Output Current
42mA
Output Power
1W
Output Voltage
12V
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECONOLINE RB (1W)
Voltage - Output 1
12V
Voltage - Output 2
-12V
Weight
2.2g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RB-0512D Datasheet
Download the complete datasheet for Recom RB-0512D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

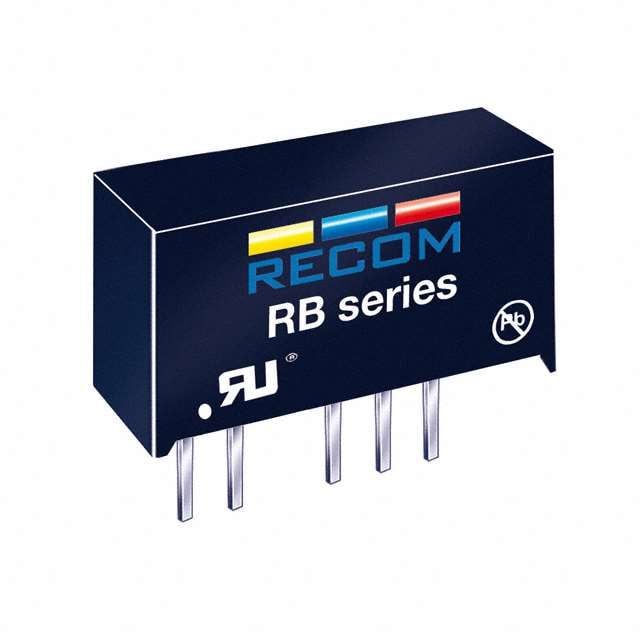

Product Images
