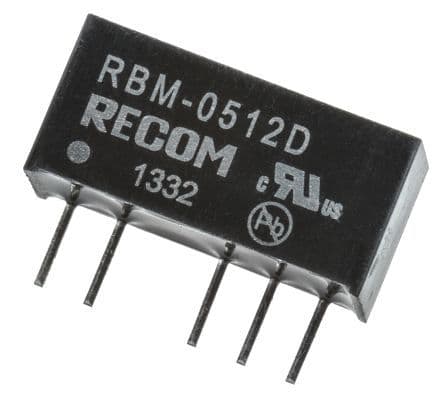

Isolated DC-DC converter with dual +/-12V DC outputs, each rated for 41mA and a total 1W output power. Features 3kV I/O isolation and 82% efficiency. Operates with a 4.5V to 5.5V DC input voltage range and includes short-circuit protection. Packaged in a SIP for through-hole PCB mounting, with dimensions of 16.55mm (L) x 6mm (W) x 7.7mm (H).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Recom RBM-0512D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Recom RBM-0512D technical specifications.
| Package/Case | SIP |
| Current - Output 1 | 41mA |
| Current - Output 2 | 41mA |
| Depth | 16.55mm |
| Efficiency | 82% |
| Features | SCP |
| Height | 7.7mm |
| Isolation | Isolated |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 16.55mm |
| Max Input Voltage (DC) | 5.5V |
| Min Input Voltage (DC) | 4.5V |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 41mA |
| Max Output Power | 1W |
| Max Output Voltage | 12V |
| Max Power Dissipation | 1W |
| Mount | Through Hole, PCB |
| Nominal Input Voltage | 5V |
| Number of Outputs | 2 |
| Output Current | 41mA |
| Output Power | 1W |
| Output Voltage | 12V |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Power | Yes |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ECONOLINE RBM |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Weight | 1.3g |
| Width | 6mm |
| RoHS | Compliant |
