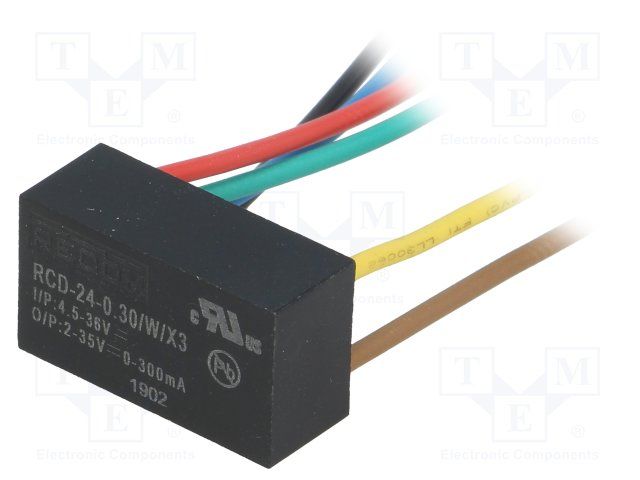

Constant current LED driver with 300mA output, capable of driving LEDs from a 4.5V to 36V input. Features 96% efficiency, analog and PWM dimming, and a maximum output power of 10.5W. This single-output device offers short-circuit protection (SCP) and operates within a -40°C to 85°C temperature range. Chassis and through-hole mountable with wire leads, it is IP67 rated and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Recom RCD-24-0.30/W/X3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | cULus |
| Current - Output 1 | 300mA |
| Dimming | Analog, PWM |
| Efficiency | 96% |
| Features | SCP |
| Height | 8.5mm |
| Lead Free | Lead Free |
| Length | 22.1mm |
| Max Input Voltage | 36V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 300mA |
| Max Output Power | 10.5W |
| Max Output Voltage | 35V |
| Max Power Dissipation | 11W |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 4.5V |
| Mount | Chassis Mount, Through Hole |
| Number of Outputs | 1 |
| Output Current | 300mA |
| Output Voltage | 35V |
| Package Quantity | 5 |
| Packaging | Bulk |
| Power Dissipation | 800mW |
| Ratings | IP67 |
| RoHS Compliant | Yes |
| Series | LIGHTLINE RCD-24 |
| Supply Current | 300uA |
| Termination | Wire Leads |
| Voltage - Output 1 | 35V |
| Voltage Rating | 36V |
| Weight | 6.8g |
| Width | 12.6mm |
| RoHS | Compliant |
