2W DC/DC Converter with dual ±5V outputs, featuring a 24V nominal input voltage (21.6V to 26.4V range) and 200mA maximum output current per channel. This SIP package converter offers 1kV isolation voltage and 82% efficiency, with built-in short-circuit protection (SCP). Designed for through-hole mounting, it operates within a -40°C to 85°C temperature range and is lead-free and RoHS compliant.
PackageSIP
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications
Recom RD-2405D technical specifications.
General
| Package/Case | SIP |
| Depth | 10.2mm |
| Efficiency | 82% |
| Features | SCP |
| Height | 10.2mm |
| Isolation Voltage | 1kV |
| Lead Free | Lead Free |
| Length | 19.65mm |
| Max Input Voltage | 26.4V |
| Min Input Voltage | 21.6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Voltage | 5V |
| Max Power Dissipation | 2W |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Number of Outputs | 2 |
| Output Current | 200mA |
| Output Power | 2W |
| Output Voltage | 5V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | ECONOLINE RD |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Weight | 2.8g |
| Width | 7.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Recom RD-2405D Datasheet
Download the complete datasheet for Recom RD-2405D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

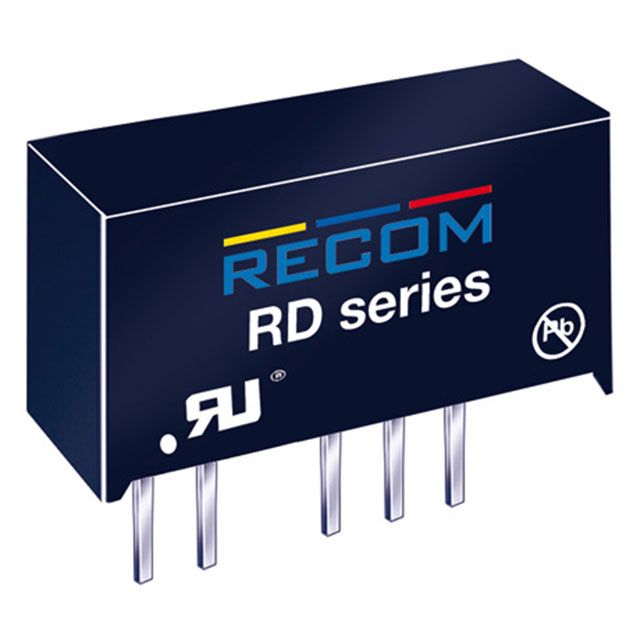

Product Images
