Isolated DC-DC Converter, 1W output power, featuring a 5V nominal output voltage and 200mA maximum output current. Operates with a 10.8V to 13.2V DC input range, delivering 78% efficiency. This SIP package component offers 3kV isolation and is designed for through-hole PCB mounting. It functions within a -40°C to 85°C temperature range.
PackageSIP
MountingThrough Hole, PCB
Power1W
Quick Jump:
Technical Specifications
Recom RK-1205S technical specifications.
General
Package/Case
SIP
Current - Output 1
200mA
Depth
19.6mm
Efficiency
78%
Height
10.2mm
Isolation
Isolated
Isolation Voltage
3kV
Lead Free
Lead Free
Length
19.6mm
Max Input Voltage (DC)
13.2V
Min Input Voltage (DC)
10.8V
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Power
1W
Max Output Voltage
5V
Max Power Dissipation
1W
Mount
Through Hole, PCB
Nominal Input Voltage
12V
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
200mA
Output Power
1W
Output Voltage
5V
Packaging
Rail/Tube
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
RK
Voltage - Output 1
5V
Weight
2.6g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RK-1205S Datasheet
Download the complete datasheet for Recom RK-1205S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

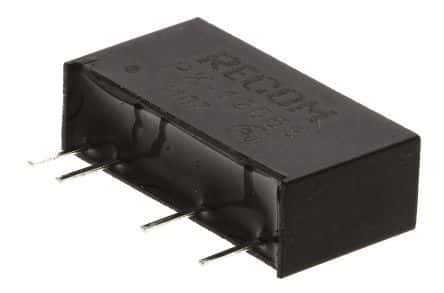

Product Images
