Isolated DC-DC converter with 5V nominal output voltage and 1W maximum output power. Features 200mA maximum output current, 78% efficiency, and 3kV isolation voltage. Operates within a -40°C to 85°C temperature range and is housed in a SIP package for through-hole PCB mounting. Includes short-circuit protection (SCP) and is RoHS compliant.
PackageSIP
MountingThrough Hole, PCB
Power1W
Quick Jump:
Technical Specifications
Recom RK-1505S technical specifications.
General
Package/Case
SIP
Current - Output 1
200mA
Depth
10.2mm
Efficiency
78%
Features
SCP
Height
10.2mm
Isolation
Isolated
Isolation Voltage
3kV
Lead Free
Lead Free
Length
19.6mm
Max Input Voltage (DC)
15V
Max Input Voltage
16.5V
Min Input Voltage
13.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Power
1W
Max Output Voltage
5V
Max Power Dissipation
1W
Mount
Through Hole, PCB
Nominal Input Voltage
15V
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
200mA
Output Power
1W
Output Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECONOLINE RK
Voltage - Output 1
5V
Weight
2.6g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RK-1505S Datasheet
Download the complete datasheet for Recom RK-1505S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

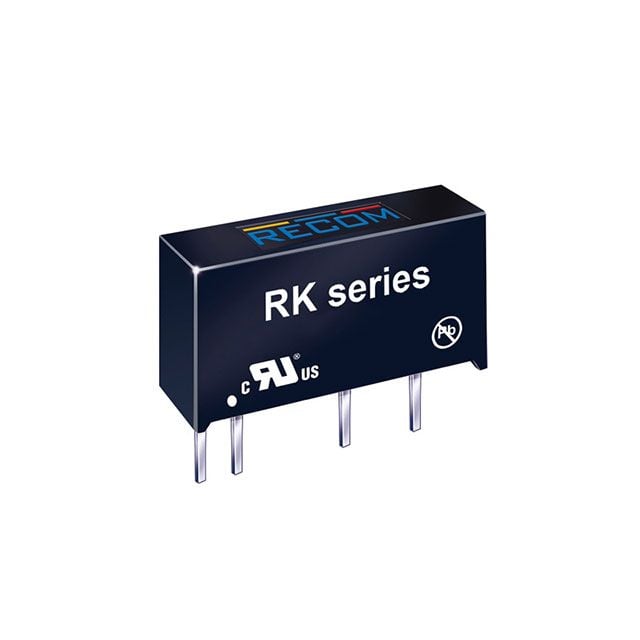

Product Images
