Isolated DC-DC converter with 12V nominal output voltage and 1W maximum output power. Features 84mA maximum output current, 3kV isolation voltage, and 82% efficiency. Operates within a 21.6V to 26.4V DC input range, with a nominal input voltage of 24V. Packaged in a SIP for through-hole mounting, this lead-free component offers short-circuit protection (SCP) and operates from -40°C to 85°C.
PackageSIP
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Recom RK-2412S technical specifications.
General
Package/Case
SIP
Current - Output 1
84mA
Depth
19.6mm
Efficiency
82%
Features
SCP
Height
10.2mm
Isolation
Isolated
Isolation Voltage
3kV
Lead Free
Lead Free
Length
19.6mm
Max Input Voltage (DC)
26.4V
Min Input Voltage (DC)
21.6V
Max Input Voltage
26.4V
Min Input Voltage
21.6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
84mA
Max Output Power
1W
Max Output Voltage
12V
Max Power Dissipation
1W
Mount
Through Hole
Nominal Input Voltage
24V
Nominal Output Voltage
12V
Number of Outputs
1
Output Current
84mA
Output Power
1W
Output Voltage
12V
Package Quantity
25
Packaging
Rail/Tube
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECONOLINE RK
Voltage - Output 1
12V
Weight
2.6g
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Recom RK-2412S Datasheet
Download the complete datasheet for Recom RK-2412S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

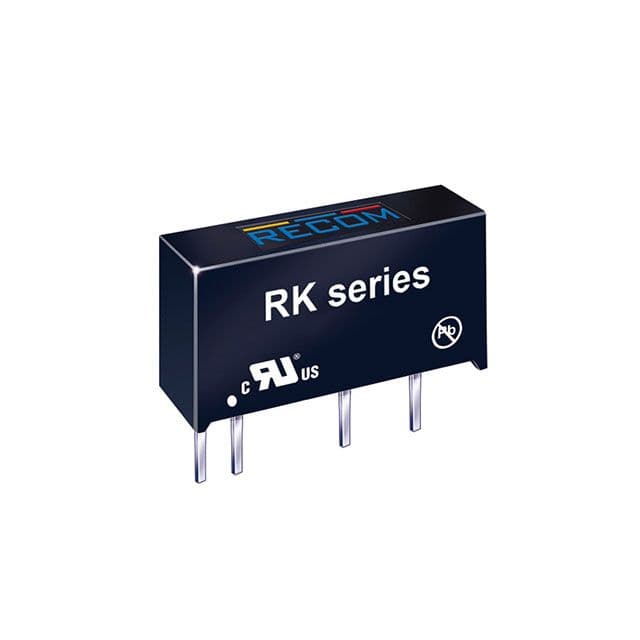

Product Images
