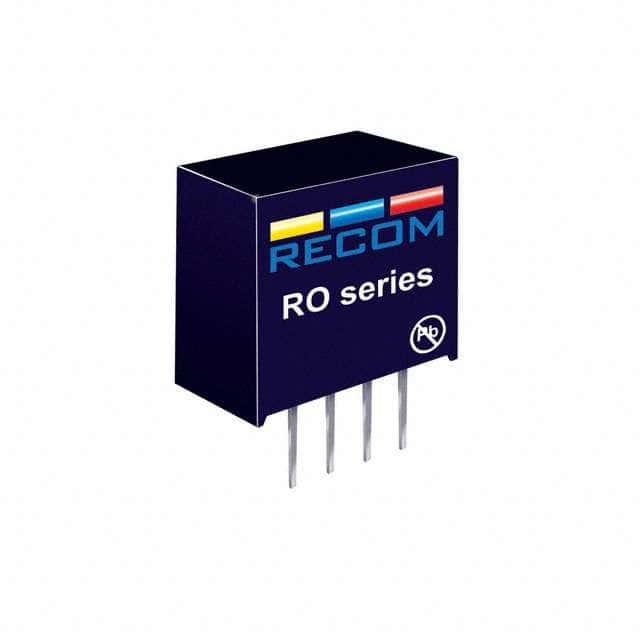

Isolated DC-DC Converter, 1W output power, 5V nominal output voltage, and 200mA maximum output current. Features include Short Circuit Protection (SCP) and 3kV isolation voltage. Operates with a 4.5V to 5.5V DC input voltage range and offers 78% efficiency. Packaged in a SIP for through-hole PCB mounting, with dimensions of 11.5mm (L) x 6.05mm (W) x 7.7mm (H).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Recom ROM-0505S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SIP |
| Current - Output 1 | 200mA |
| Depth | 11.5mm |
| Efficiency | 78% |
| Features | SCP |
| Height | 7.7mm |
| Isolation | Isolated |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 11.5mm |
| Max Input Voltage (DC) | 5.5V |
| Min Input Voltage (DC) | 4.5V |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Power | 1W |
| Max Output Voltage | 5V |
| Max Power Dissipation | 1W |
| Mount | Through Hole, PCB |
| Nominal Input Voltage | 5V |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Current | 200mA |
| Output Power | 1W |
| Output Voltage | 5V |
| Package Quantity | 42 |
| Packaging | Rail/Tube |
| Power | Yes |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ROM |
| Voltage - Output 1 | 5V |
| Weight | 1g |
| Width | 6.05mm |
| RoHS | Compliant |
