Isolated DC-DC converter, 1W output power, 5V nominal output voltage, and 200mA maximum output current. Features include short-circuit protection (SCP) and 3kV isolation voltage. Operates with a 10.8V to 13.2V DC input voltage range, nominal 12V input. Through-hole, PCB mountable in a SIP package, with a 78% efficiency.
PackageSIP
MountingThrough Hole, PCB
Power1W
Quick Jump:
Technical Specifications
Recom ROM-1205S technical specifications.
General
Package/Case
SIP
Current - Output 1
200mA
Depth
11.5mm
Efficiency
78%
Features
SCP
Height
7.7mm
Isolation
Isolated
Isolation Voltage
3kV
Lead Free
Lead Free
Length
11.5mm
Max Input Voltage (DC)
13.2V
Min Input Voltage (DC)
10.8V
Max Input Voltage
13.2V
Min Input Voltage
10.8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
200mA
Max Output Power
1W
Max Output Voltage
5V
Max Power Dissipation
1W
Mount
Through Hole, PCB
Nominal Input Voltage
12V
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
200mA
Output Power
1W
Output Voltage
5V
Package Quantity
42
Packaging
Rail/Tube
Power
Yes
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ECONOLINE ROM
Voltage - Output 1
5V
Weight
1g
Width
6.05mm
Compliance
RoHS
Compliant
Datasheet
Recom ROM-1205S Datasheet
Download the complete datasheet for Recom ROM-1205S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

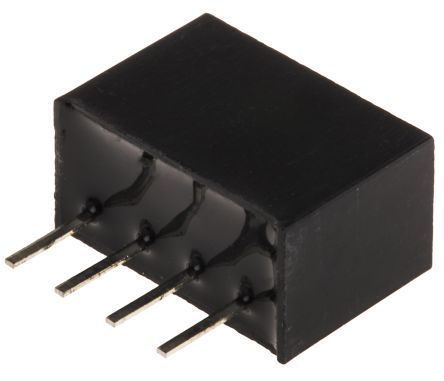

Product Images
