20W DC-DC Converter, 5V Output Voltage, 4A Output Current. Features include UVLO, OVP, OCP, OTP, SCP, and isolated operation with 1.6kV isolation voltage. Operates from a 9V to 36V DC input, with a nominal input of 24V. Through-hole, PCB mountable, with a compact 40.6mm x 25.4mm x 12.7mm package. High efficiency of 88.1% and RoHS compliant.
MountingThrough Hole, PCB
Power20W
Quick Jump:
Technical Specifications
Recom RPP20-2405SW technical specifications.
General
Current - Output 1
4A
Depth
41mm
Efficiency
88.1%
Features
UVLO, OVP, OCP, OTP, SCP
Height
12.7mm
Isolation
Isolated
Isolation Voltage
1.6kV
Lead Free
Lead Free
Length
40.6mm
Max Input Voltage (DC)
36V
Min Input Voltage (DC)
9V
Max Input Voltage
36V
Min Input Voltage
9V
Max Operating Temperature
95°C
Min Operating Temperature
-45°C
Max Output Current
4A
Max Output Power
20W
Max Output Voltage
5.5V
Max Power Dissipation
20W
Mount
Through Hole, PCB
Nominal Input Voltage
24V
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
4A
Output Power
20W
Output Voltage
5V
Package Quantity
5
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
POWERLINE+ RPP20-W
Voltage - Output 1
5V
Weight
27g
Width
25.4mm
Compliance
RoHS
Compliant
Datasheet
Recom RPP20-2405SW Datasheet
Download the complete datasheet for Recom RPP20-2405SW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

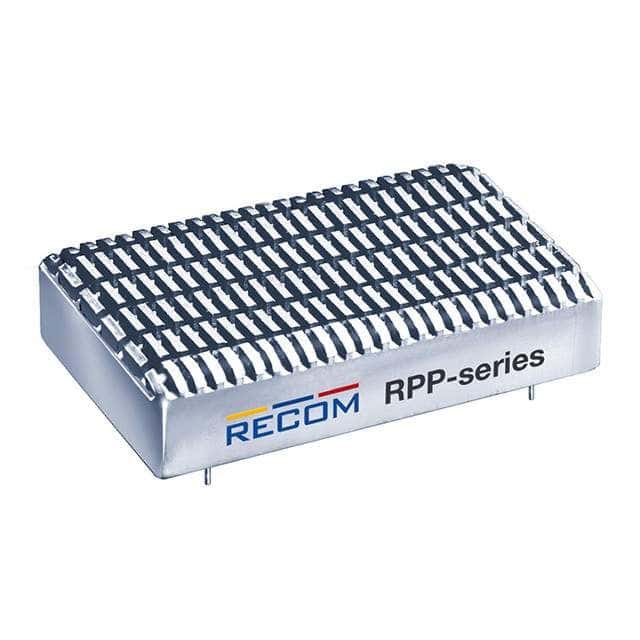

Product Images
