Isolated DC-DC converter, 30W output power, featuring a 5V DC output voltage and 6A maximum output current. Input voltage range spans 18V to 36V DC, with a nominal input of 24V DC. Offers 2.25kV DC I/O isolation and operates efficiently up to 91.1%. Integrated protection includes UVLO, OVP, OCP, OTP, and SCP. Module package designed for through-hole mounting, with dimensions of 50.8mm x 30.5mm x 11.7mm.
PackageModule
MountingThrough Hole
Power30W
Quick Jump:
Technical Specifications
Recom RPP30-2405S technical specifications.
General
| Package/Case | Module |
| Current - Output 1 | 6A |
| Depth | 11.7mm |
| Efficiency | 91.1% |
| Features | UVLO, OVP, OCP, OTP, SCP |
| Height | 12.7mm |
| Isolation Voltage | 2.25kV |
| Lead Free | Lead Free |
| Length | 50.8mm |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 93°C |
| Min Operating Temperature | -45°C |
| Max Output Current | 6A |
| Max Output Voltage | 5.5V |
| Max Power Dissipation | 30W |
| Mount | Through Hole |
| Nominal Input Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 6A |
| Output Power | 30W |
| Output Voltage | 5V |
| Package Quantity | 4 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | POWERLINE+ RPP30 |
| Voltage - Output 1 | 5V |
| Weight | 39g |
| Width | 30.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Recom RPP30-2405S Datasheet
Download the complete datasheet for Recom RPP30-2405S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

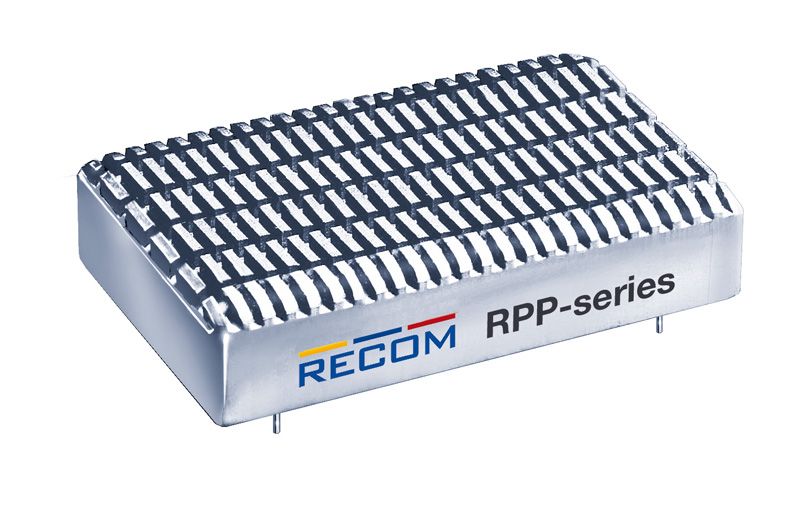

Product Images
