Board mount DC/DC converter, 1W output power, featuring dual +/-15V outputs with 34mA current per output. This isolated converter operates with a 9V to 36V DC input range, delivering 1W maximum output power. It offers 3kV isolation voltage and a wide operating temperature range of -40°C to 85°C. The SIP package is designed for through-hole PCB mounting, with dimensions of 21.8mm (L) x 9.2mm (W) x 11.1mm (H). Efficiency is rated at 80%, and it includes short-circuit protection.
PackageSIP
MountingThrough Hole, PCB
Power1W
Quick Jump:
Technical Specifications
Recom RSO-2415DZ/H3 technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 34mA |
| Current - Output 2 | -34mA |
| Depth | 9.2mm |
| Efficiency | 80% |
| Features | SCP |
| Height | 11.1mm |
| Isolation | Isolated |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 21.8mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 9V |
| Max Input Voltage | 36V |
| Min Input Voltage | 9V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 34mA |
| Max Output Power | 1W |
| Max Output Voltage | 15V |
| Max Power Dissipation | 1W |
| Mount | Through Hole, PCB |
| Nominal Input Voltage | 24V |
| Number of Outputs | 2 |
| Output Current | 34mA |
| Output Power | 1W |
| Output Voltage | 15V |
| Package Quantity | 22 |
| Packaging | Rail/Tube |
| Power | Yes |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | RSO |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Weight | 4.7g |
| Width | 9.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Recom RSO-2415DZ/H3 Datasheet
Download the complete datasheet for Recom RSO-2415DZ/H3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

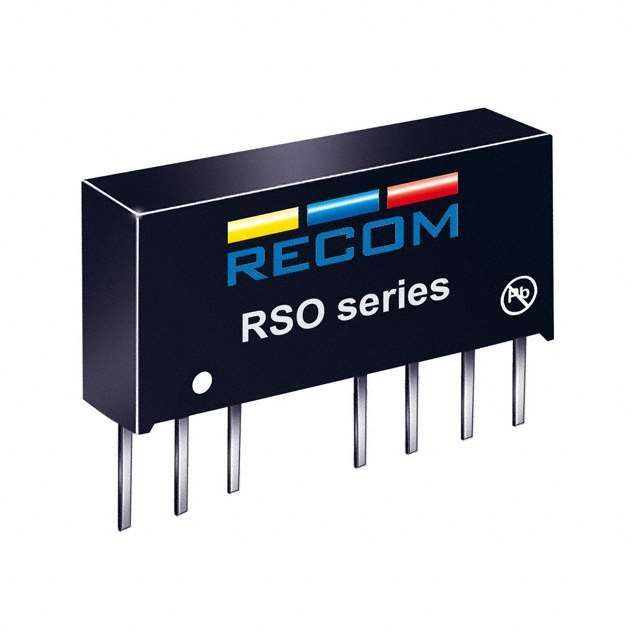

Product Images
