Small signal switching rectifier diode, 75V reverse voltage, 0.3A forward current, 4ns switching time. Features a 2-pin SOD-523 package, supplied on tape and reel with 3000 units per package. Operates from -65°C to 150°C, with a maximum reverse leakage current of 1uA and a maximum surge current of 2A. Lead-free, RoHS, and REACH SVHC compliant.
Quick Jump:
Technical Specifications
Rectron 1N4148WT technical specifications.
General
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Reverse Leakage Current | 1uA |
| Max Surge Current | 2A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Rectron 1N4148WT Datasheet
Download the complete datasheet for Rectron 1N4148WT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

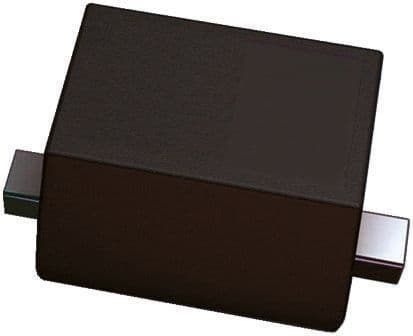

Product Images
