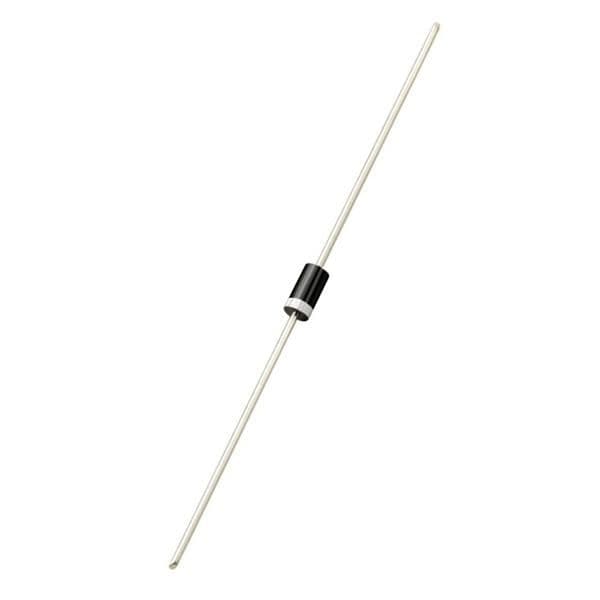

The 1N5817-T is a general purpose rectifier diode with a DC rated voltage of 20V and a current rating of 1A. It is packaged in a DO-41 package and is compliant with ROHS regulations. The diode has a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It also features a maximum reverse leakage current of 200uA and a maximum surge current of 25A.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Rectron 1N5817-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 110pF |
| Package/Case | DO-41 |
| Current Rating | 1A |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 200uA |
| Max Surge Current | 25A |
| Output Current | 1A |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Polarity | Standard |
| RoHS Compliant | Yes |
| DC Rated Voltage | 20V |
| RoHS | Compliant |
