Rectron
1N5819-T
Rectifier Diode, Schottky, 1 Element, 1A, 40V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PALSTIC PACKAGE-2
PackageDO-41
Capacitance110pF
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Rectron 1N5819-T technical specifications.
General
Capacitance
110pF
Package/Case
DO-41
Current Rating
1A
Forward Current
1A
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
25A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
200uA
Mount
Through Hole
Output Current
1A
Package Quantity
5000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
25A
Polarity
Standard
Radiation Hardening
No
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
DC Rated Voltage
40V
Compliance
RoHS
Compliant
Datasheet
Rectron 1N5819-T Datasheet
Download the complete datasheet for Rectron 1N5819-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

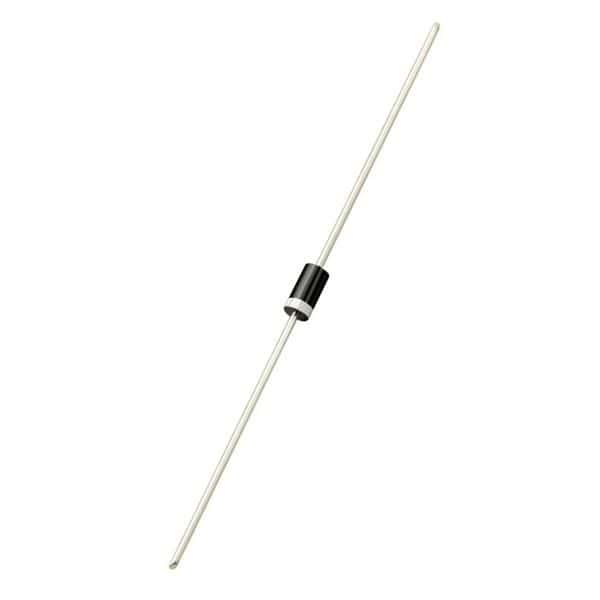

Product Images
