16MHz CMOS microcontroller featuring 66 I/O lines, operating from a 4.5V to 5.5V supply. This surface-mount device utilizes a TFQFP package with a 0.5mm terminal pitch, measuring 12mm x 12mm x 1.2mm. It operates within a temperature range of -20°C to 75°C and is RoHS compliant.
Frequency16MHz
Quick Jump:
Technical Specifications
Renesas HD64F3337YTFLH16 technical specifications.
General
| Height - Seated (Max) | 1.2mm |
| JESD-30 Code | S-PQFP-G80 |
| Length | 12mm |
| Max Frequency | 16MHz |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -20°C |
| Max Supply Current | 60mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Moisture Sensitivity Level | 3 |
| Number of I/O Lines | 66 |
| Package Body Material | Plastic |
| Package Code | TFQFP |
| Package Shape | Square |
| Package Style | FLATPACK, THIN PROFILE, FINE PITCHMeter |
| Peak Reflow Temperature (Cel) | 260°C |
| Power Supplies | 5V |
| Qualification Status | Not Qualified |
| RoHS Compliant | Yes |
| Speed | 16RPM |
| Supply Voltage-Nom | 5V |
| Surface Mount | Yes |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Form | Gull Wing |
| Terminal Pitch | 0.5mm |
| Terminal Position | QUAD |
| Time @ Peak Reflow Temperature-Max (s) | 20s |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Renesas HD64F3337YTFLH16 Datasheet
Download the complete datasheet for Renesas HD64F3337YTFLH16 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

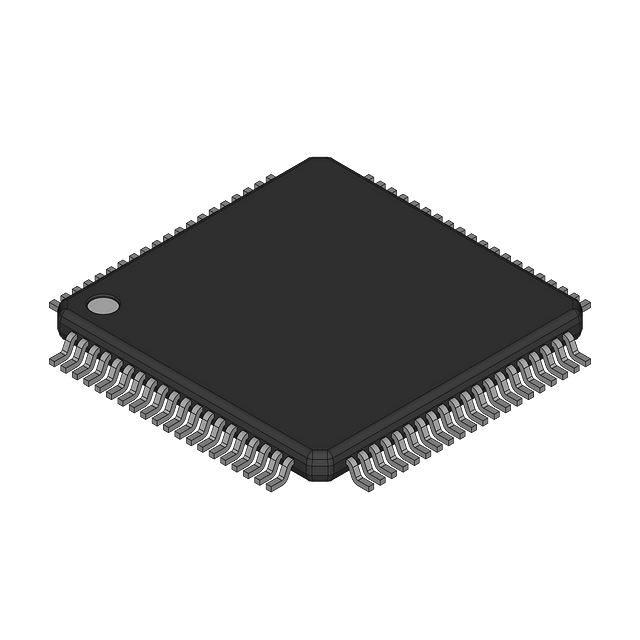

Product Images
