128K x 8 CMOS SRAM IC with 1Mbit density, offering 55ns maximum access time. This parallel interface component features 3-state outputs and operates from a 4.5V to 5.5V supply voltage, with a nominal 5V. Designed for surface mounting, it comes in a 32-pin small outline package (SOP) with a 1.27mm terminal pitch. Operating temperature range is 0°C to 70°C, with a maximum supply current of 35mA and a standby current of 2uA.
Quick Jump:
Technical Specifications
Renesas R1LP0108ESP-5SR#S0 technical specifications.
General
Access Time-Max
55ns
Density
1048576b
I/O Type
COMMON
JESD-30 Code
R-PDSO-G32
Max Operating Temperature
70°C
Memory Type
SRAM,
Memory Width
8
Min Operating Temperature
0°C
Max Supply Current
35mA
Moisture Sensitivity Level
2
Number of Functions
1
Number of Words
131072
Number of Words Code
128K
Organization
128KX8
Output Characteristics
3-STATE
Package Body Material
Plastic
Package Code
SOP
Package Shape
Rectangular
Package Style
SMALL OUTLINEMeter
Parallel/Serial
PARALLEL
Power Supplies
5V
Qualification Status
Not Qualified
RoHS Compliant
Yes
Standby Current-Max
2uA
Standby Voltage-Min
2V
Supply Voltage-Max (Vsup)
5.5V
Supply Voltage-Min (Vsup)
4.5V
Supply Voltage-Nom (Vsup)
5V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
COMMERCIAL
Terminal Form
Gull Wing
Terminal Pitch
1.27mm
Terminal Position
DUAL
Compliance
RoHS
Compliant
Datasheet
Renesas R1LP0108ESP-5SR#S0 Datasheet
Download the complete datasheet for Renesas R1LP0108ESP-5SR#S0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

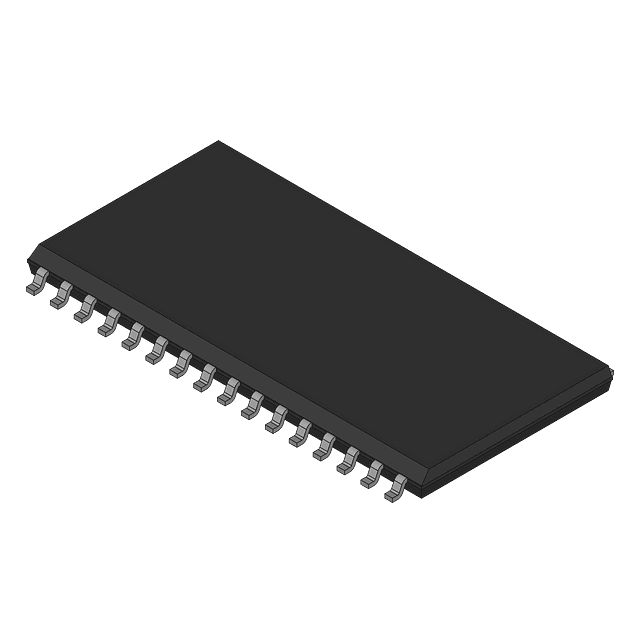

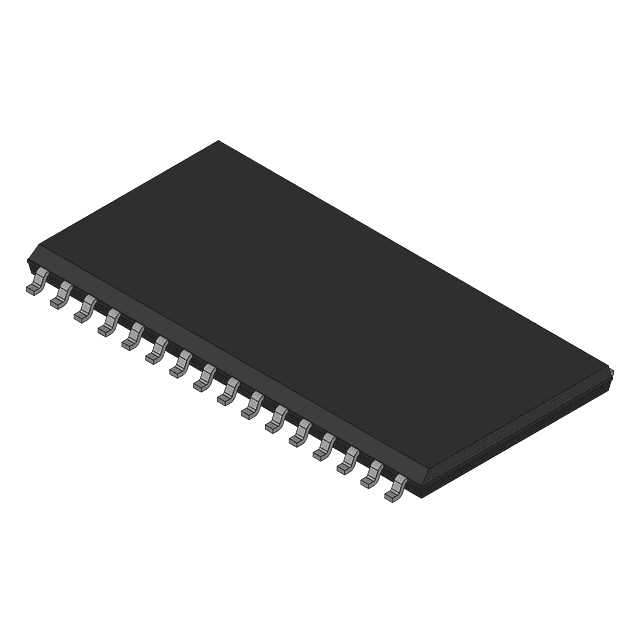

Product Images
