Industrial temperature grade CMOS SRAM IC with 4Mbit density, organized as 512K x 8. Features a maximum access time of 55ns and operates with a supply voltage range of 4.5V to 5.5V. This parallel SRAM is housed in a 32-pin SOP (Small Outline) rectangular package with gull wing terminals, suitable for surface mounting. RoHS compliant with a terminal pitch of 1.27mm.
Quick Jump:
Technical Specifications
Renesas R1LP0408CSP-5SI#B0 technical specifications.
General
Access Time-Max
55ns
Density
4194304b
Height - Seated (Max)
3.05mm
JESD-30 Code
R-PDSO-G32
JESD-609 Code
e2
Length
20.75mm
Max Operating Temperature
85°C
Memory Type
SRAM,
Memory Width
8
Min Operating Temperature
-40°C
Number of Functions
1
Number of Words
524288
Number of Words Code
512K
Organization
512KX8
Package Body Material
Plastic
Package Code
SOP
Package Shape
Rectangular
Package Style
SMALL OUTLINEMeter
Parallel/Serial
PARALLEL
RoHS Compliant
Yes
Supply Voltage-Max (Vsup)
5.5V
Supply Voltage-Min (Vsup)
4.5V
Supply Voltage-Nom (Vsup)
5V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
INDUSTRIAL
Terminal Finish
Copper
Terminal Form
Gull Wing
Terminal Pitch
1.27mm
Terminal Position
DUAL
Width
11.4mm
Compliance
RoHS
Compliant
Datasheet
Renesas R1LP0408CSP-5SI#B0 Datasheet
Download the complete datasheet for Renesas R1LP0408CSP-5SI#B0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

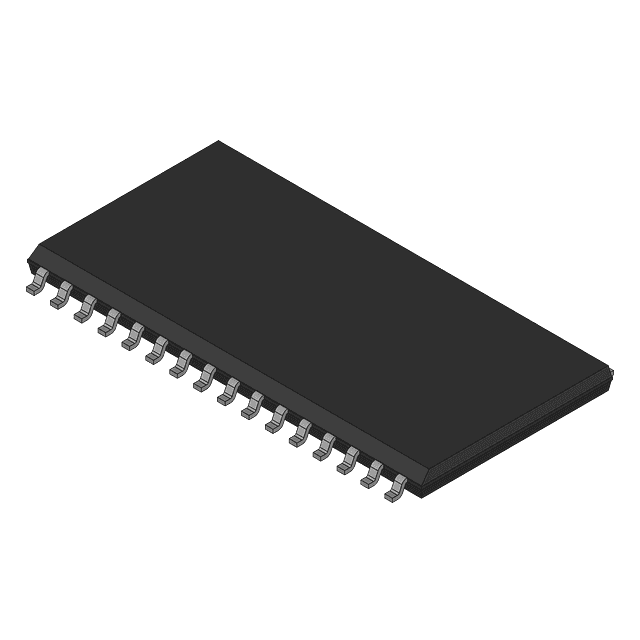

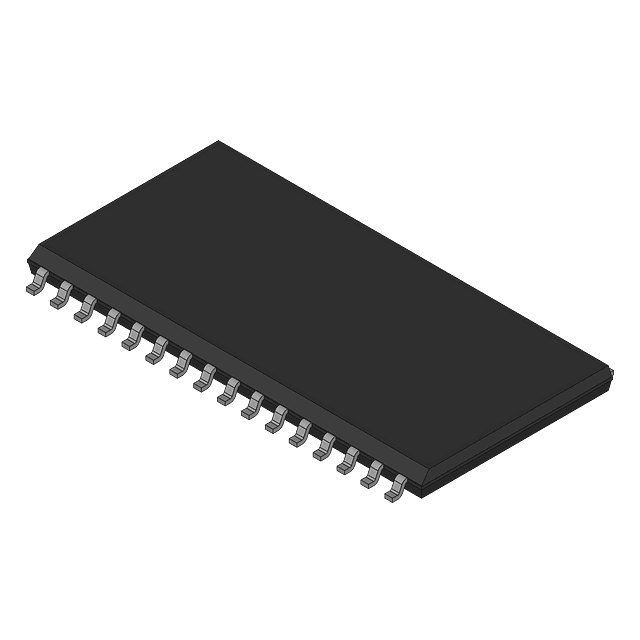

Product Images
