High-performance Quad Data Rate (QDR) SRAM with 4M x 9 organization, offering a maximum clock frequency of 250MHz and a rapid 0.45ns access time. This CMOS component features separate I/O, 3-state output characteristics, and operates from a 1.7V to 1.9V supply voltage, with a nominal 1.8V. Packaged in a 165-ball PBGA (15 x 17mm) with a 1mm terminal pitch, this surface-mount device is RoHS compliant and rated for commercial temperature grades (0°C to 70°C).
Quick Jump:
Technical Specifications
Renesas UPD44325092BF5-E40-FQ1-A technical specifications.
General
Access Time-Max
0.45ns
Clock Frequency-Max (fCLK)
250MHz
Density
37748736b
Height - Seated (Max)
1.46mm
I/O Type
SEPARATE
JESD-30 Code
R-PBGA-B165
Length
17mm
Max Operating Temperature
70°C
Memory Type
QDR SRAM
Memory Width
9
Min Operating Temperature
0°C
Max Supply Current
510mA
Number of Functions
1
Number of Words
4194304
Number of Words Code
4M
Organization
4MX9
Output Characteristics
3-STATE
Package Body Material
Plastic
Package Code
LBGA
Package Equivalence Code
BGA165,11X15,40
Package Shape
Rectangular
Package Style
GRID ARRAY, LOW PROFILEMeter
Parallel/Serial
PARALLEL
Power Supplies
1.5/1.8,1.8V
Qualification Status
Not Qualified
RoHS Compliant
Yes
Standby Current-Max
300mA
Standby Voltage-Min
1.7V
Supply Voltage-Max (Vsup)
1.9V
Supply Voltage-Min (Vsup)
1.7V
Supply Voltage-Nom (Vsup)
1.8V
Surface Mount
Yes
Technology
CMOS
Temperature Grade
COMMERCIAL
Terminal Form
Ball
Terminal Pitch
1mm
Terminal Position
BOTTOM
Width
15mm
Compliance
RoHS
Compliant
Datasheet
Renesas UPD44325092BF5-E40-FQ1-A Datasheet
Download the complete datasheet for Renesas UPD44325092BF5-E40-FQ1-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

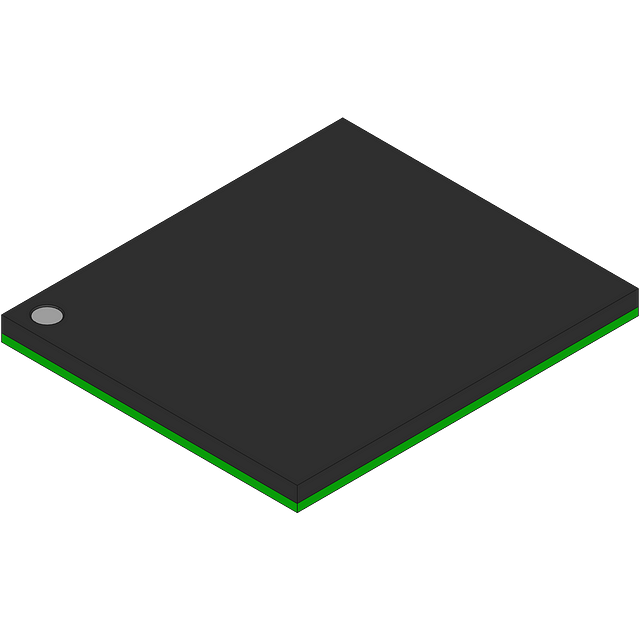

Product Images
