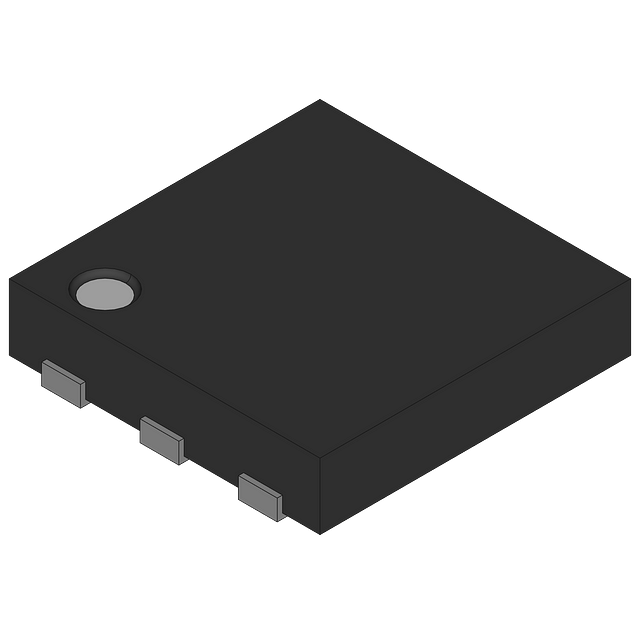

Low Noise Amplifier, a BICMOS analog circuit, features a 6-pin HVSON package with a 0.5mm terminal pitch. Operating from 2.3V to 3.3V supply voltage with a nominal 2.8V, this surface-mount component offers an industrial temperature grade, functioning between -40°C and 85°C. Its compact 1.5mm x 1.5mm x 0.4mm square package is RoHS and REACH SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Renesas UPD5740T6N-E2-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Analog IC - Other Type | ANALOG CIRCUIT |
| Height - Seated (Max) | 0.4mm |
| JESD-30 Code | S-PDSO-N6 |
| Length | 1.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Functions | 1 |
| Package Body Material | Plastic |
| Package Code | HVSON |
| Package Shape | Square |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILEMeter |
| Qualification Status | Not Qualified |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Supply Voltage-Max (Vsup) | 3.3V |
| Supply Voltage-Min (Vsup) | 2.3V |
| Supply Voltage-Nom (Vsup) | 2.8V |
| Surface Mount | Yes |
| Technology | BICMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | No Lead |
| Terminal Pitch | 0.5mm |
| Terminal Position | DUAL |
| Width | 1.5mm |
| RoHS | Compliant |
