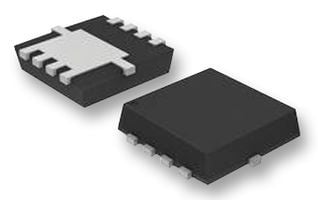

The RT8297BZQW is a surface mount DC/DC controller from Richtek with an efficiency of 95%. It operates within a temperature range of -40°C to 85°C and is RoHS compliant. The device has a single output with a maximum output voltage of 12V and a maximum output current of 1.5A. It is suitable for use in applications where a positive output is required. The RT8297BZQW is packaged in an R-PDSO-N8 package and is available in a cut tape format.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Richtek RT8297BZQW datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Efficiency | 95% |
| Lead Free | Lead Free |
| Max Input Voltage | 17V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 12V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 12V |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
| RoHS | Compliant |
Download the complete datasheet for Richtek RT8297BZQW to view detailed technical specifications.
