Technical Specifications
Richtek RT9018A-25GSP technical specifications.
General
Package/Case
SOP
Dropout Voltage
210mV
Max Input Voltage
5.5V
Min Input Voltage
1.4V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
5.15V
Min Output Voltage
800mV
Mount
Surface Mount
Nominal Output Voltage
2.5V
Number of Regulators
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed, Adjustable
Packaging
Cut Tape
Quiescent Current
1.2mA
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Richtek RT9018A-25GSP Datasheet
Download the complete datasheet for Richtek RT9018A-25GSP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

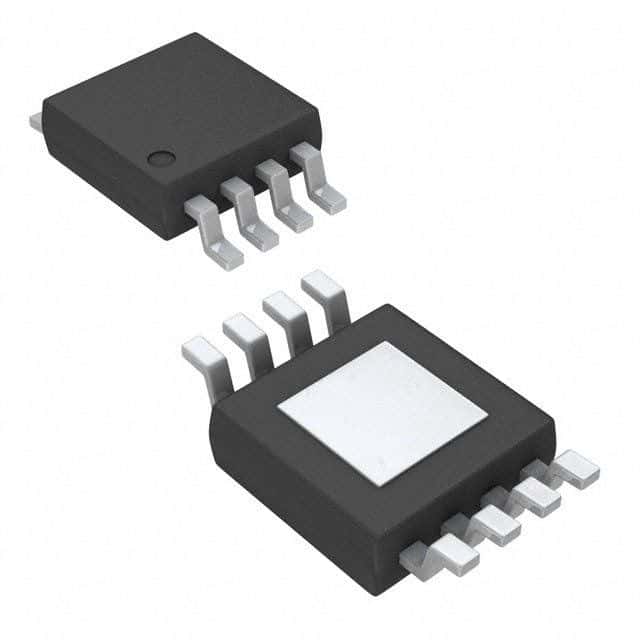

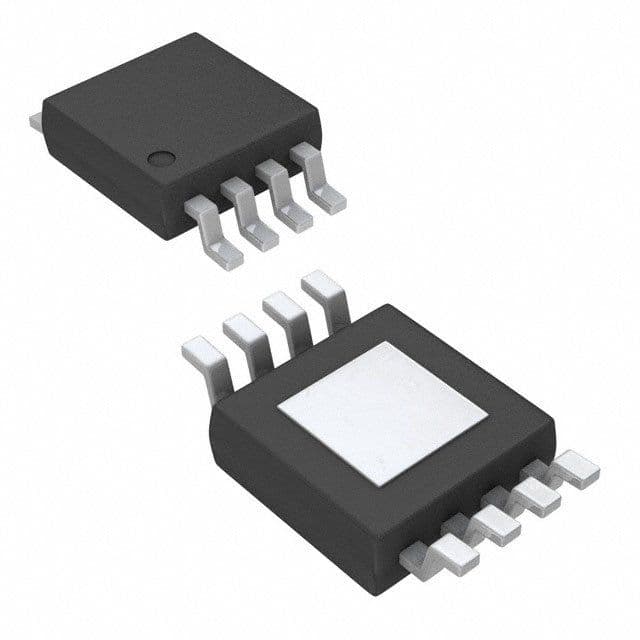

Product Images
