The RT9018B-25GQW is a single linear voltage regulator from Richtek with a nominal output voltage of 2.5V and an output current of 3A. It is available in a WDFN-10 package and is suitable for surface mount applications. The regulator operates over a temperature range of -40°C to 85°C and is compliant with RoHS regulations. The quiescent current is 1.2mA, and the maximum input voltage is 5.5V.
MountingSurface Mount
Quick Jump:
Technical Specifications
Richtek RT9018B-25GQW technical specifications.
General
| Max Input Voltage | 5.5V |
| Min Input Voltage | 1.4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 5.15V |
| Min Output Voltage | 800mV |
| Mount | Surface Mount |
| Nominal Output Voltage | 2.5V |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 3A |
| Output Type | Fixed, Adjustable |
| Packaging | Tape and Reel |
| Quiescent Current | 1.2mA |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Richtek RT9018B-25GQW Datasheet
Download the complete datasheet for Richtek RT9018B-25GQW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

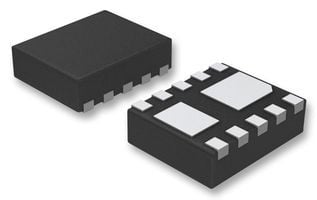

Product Images
