Through-hole fixed resistor with 50 Ohm resistance and 1% tolerance. Features a 100W maximum power dissipation and a TO-247-2 package. Operating temperature range spans from -55°C to 155°C. Dimensions include a height of 0.787 inches, length of 0.63 inches, and width of 0.189 inches.
PackageTO-247-2
Resistance50R
Quick Jump:
Technical Specifications
Riedon PF2472-50RF1 technical specifications.
General
Package/Case
TO-247-2
Height
0.787inch
Length
0.63inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
100W
Number of Terminations
2
Package Quantity
25
Packaging
Rail/Tube
Resistance
50R
Series
PF2470
Tolerance
1%
Width
0.189inch
Compliance
RoHS
Compliant
Datasheet
Riedon PF2472-50RF1 Datasheet
Download the complete datasheet for Riedon PF2472-50RF1 to view detailed technical specifications.
No datasheet is available for this part.

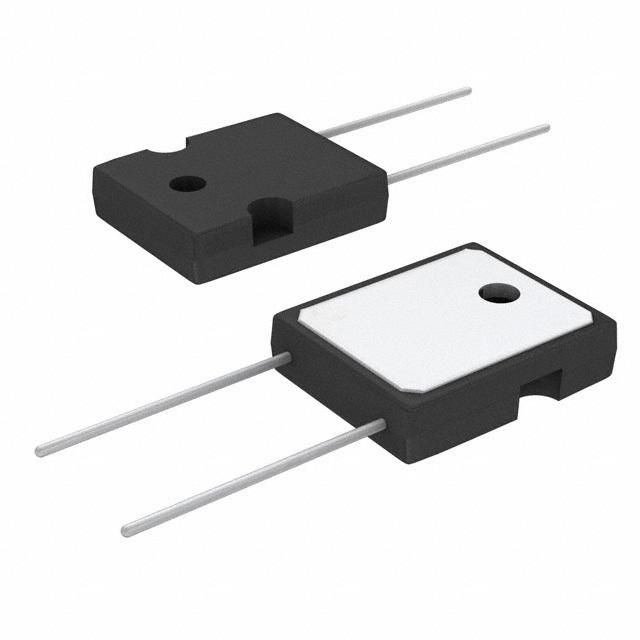

Product Images
