Dual low-noise operational amplifier featuring a 3.4MHz gain bandwidth product and 3.4MHz bandwidth. This general-purpose amplifier offers a high Common Mode Rejection Ratio of 96dB and operates with a nominal supply current of 6mA. The 8-pin SOIC package houses two independent amplifier circuits, suitable for applications requiring ±18V/36V supply.
PackageSOIC
Quick Jump:
Technical Specifications
Rochester Electronics OP213FSZ technical specifications.
General
| Bandwidth | 3.4MHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 96dB |
| Gain Bandwidth Product | 3.4MHz |
| Input Bias Current | 600nA |
| Lead Free | Contains Lead |
| Nominal Supply Current | 6mA |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Yes |
Compliance
| RoHS | Not Compliant |
Datasheet
Rochester Electronics OP213FSZ Datasheet
Download the complete datasheet for Rochester Electronics OP213FSZ to view detailed technical specifications.
No datasheet is available for this part.

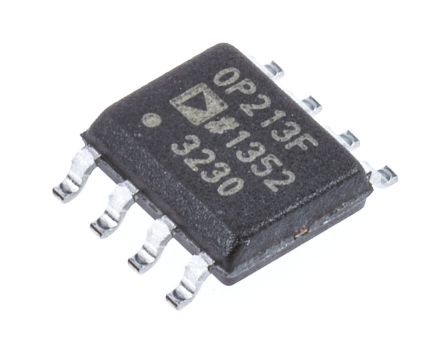

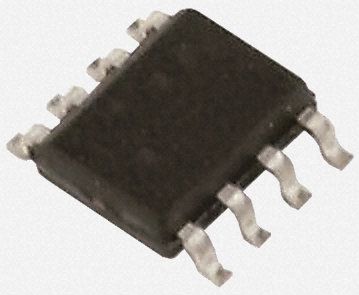

Product Images
