PNP Silicon Bipolar Junction Transistor, UMT3 package, 3-pin surface mount. Features 60V Collector-Emitter Breakdown Voltage, 60V Collector Base Voltage, and -500mA Continuous Collector Current. Offers a -500mV Collector-Emitter Saturation Voltage and 400MHz Transition Frequency. Operates from -55°C to 150°C with 200mW Max Power Dissipation. RoHS compliant and lead-free.
Frequency10MHz
PackageTO-236-3
Current Rating-500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm 2SA2088T106Q technical specifications.
General
| Package/Case | TO-236-3 |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | -500mV |
| Collector-emitter Voltage-Max | 500mV |
| Contact Plating | Copper, Tin, Silver |
| Continuous Collector Current | -500mA |
| Current Rating | -500mA |
| Emitter Base Voltage (VEBO) | 6V |
| Gain Bandwidth Product | 400MHz |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Breakdown Voltage | 60V |
| Max Collector Current | 500mA |
| Max Frequency | 10MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Transition Frequency | 400MHz |
| DC Rated Voltage | -60V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm 2SA2088T106Q Datasheet
Download the complete datasheet for Rohm 2SA2088T106Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

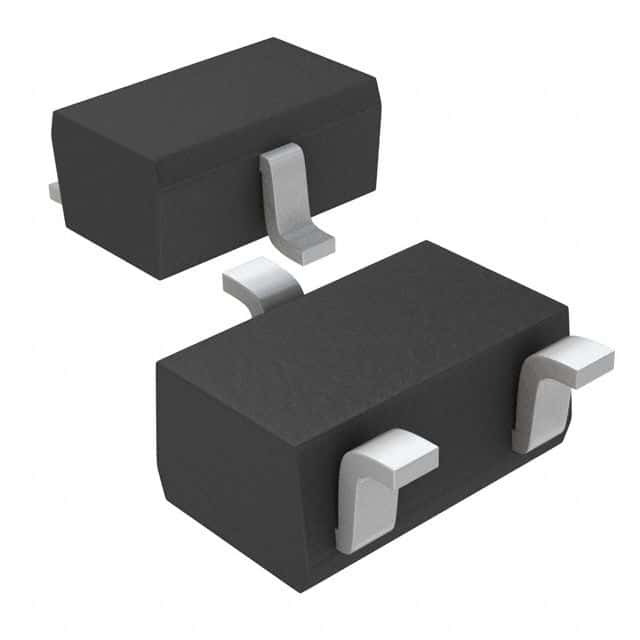

Product Images
