Technical Specifications
Rohm 2SC1741STPR technical specifications.
General
| Package/Case | SC |
| Collector Base Voltage (VCBO) | 40V |
| Collector Emitter Breakdown Voltage | 32V |
| Collector-emitter Voltage-Max | 600mV |
| Current Rating | 500mA |
| Emitter Base Voltage (VEBO) | 5V |
| Gain Bandwidth Product | 250MHz |
| hFE Min | 180 |
| Lead Free | Lead Free |
| Max Collector Current | 500mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Mount | Through Hole |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
| DC Rated Voltage | 32V |
Compliance
| RoHS | Compliant |
Datasheet
Rohm 2SC1741STPR Datasheet
Download the complete datasheet for Rohm 2SC1741STPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

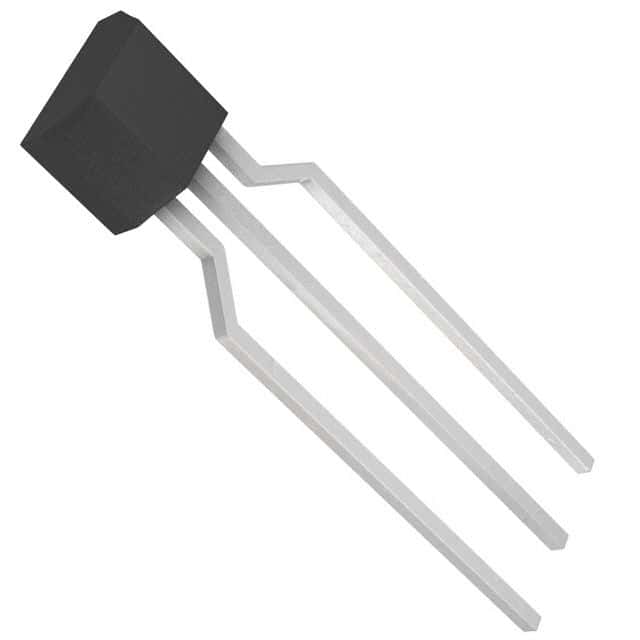

Product Images
