Rohm
2SD1768STPQ
Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, SPT, SC-72, 3 PIN
PackageSC
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
Rohm 2SD1768STPQ technical specifications.
General
Package/Case
SC
Collector Base Voltage (VCBO)
100V
Collector Emitter Breakdown Voltage
80V
Collector-emitter Voltage-Max
400mV
Emitter Base Voltage (VEBO)
5V
Gain Bandwidth Product
100MHz
hFE Min
120
Max Collector Current
1A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
300mW
Mount
Through Hole
Package Quantity
5000
Packaging
Tape and Reel
Polarity
NPN
RoHS Compliant
Yes
Transition Frequency
100MHz
Compliance
RoHS
Compliant
Datasheet
Rohm 2SD1768STPQ Datasheet
Download the complete datasheet for Rohm 2SD1768STPQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

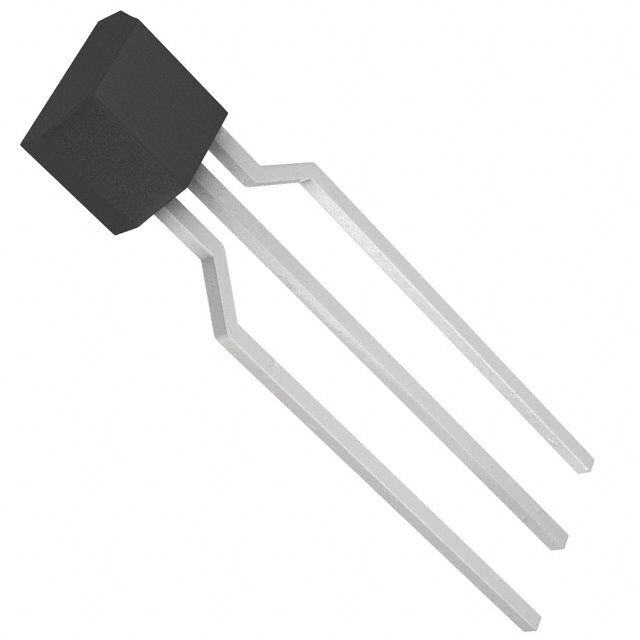

Product Images
