NPN bipolar junction transistor in SOT-89 package, designed for small signal applications. Features a 60V collector-emitter breakdown voltage and a maximum continuous collector current of 2A. Offers a minimum DC current gain (hFE) of 45 and a transition frequency of 210MHz. Operates within a temperature range of -55°C to 150°C with a maximum power dissipation of 2W. This surface mount component is RoHS compliant and features copper/tin contact plating.
Frequency100MHz
PackageSOT-89
Current Rating2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Rohm 2SD2391T100Q technical specifications.
General
| Package/Case | SOT-89 |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Breakdown Voltage | 60V |
| Collector Emitter Saturation Voltage | 130mV |
| Collector Emitter Voltage (VCEO) | 60V |
| Collector-emitter Voltage-Max | 350mV |
| Contact Plating | Copper, Tin |
| Continuous Collector Current | 2A |
| Current Rating | 2A |
| Emitter Base Voltage (VEBO) | 6V |
| Gain Bandwidth Product | 210MHz |
| Height | 1.4mm |
| hFE Min | 45 |
| Lead Free | Lead Free |
| Length | 4.7mm |
| Max Breakdown Voltage | 60V |
| Max Collector Current | 2A |
| Max Frequency | 100MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 500mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Transition Frequency | 210MHz |
| DC Rated Voltage | 60V |
| Width | 2.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Rohm 2SD2391T100Q Datasheet
Download the complete datasheet for Rohm 2SD2391T100Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

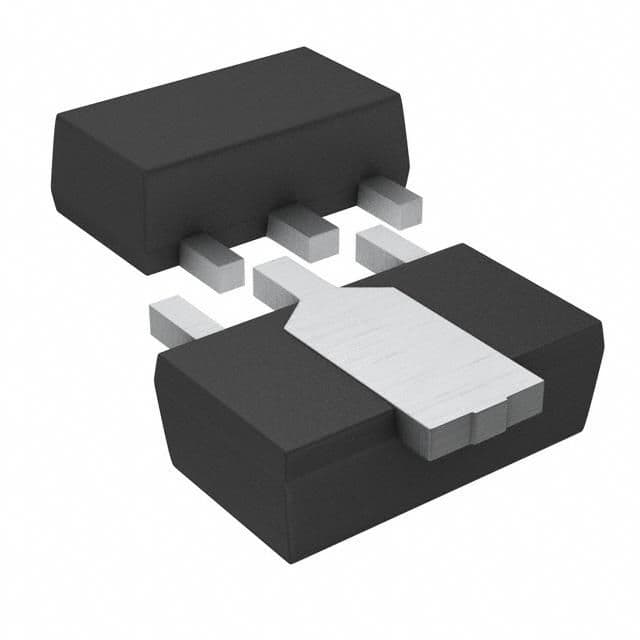

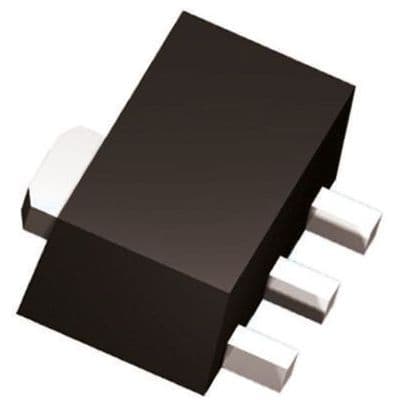

Product Images
